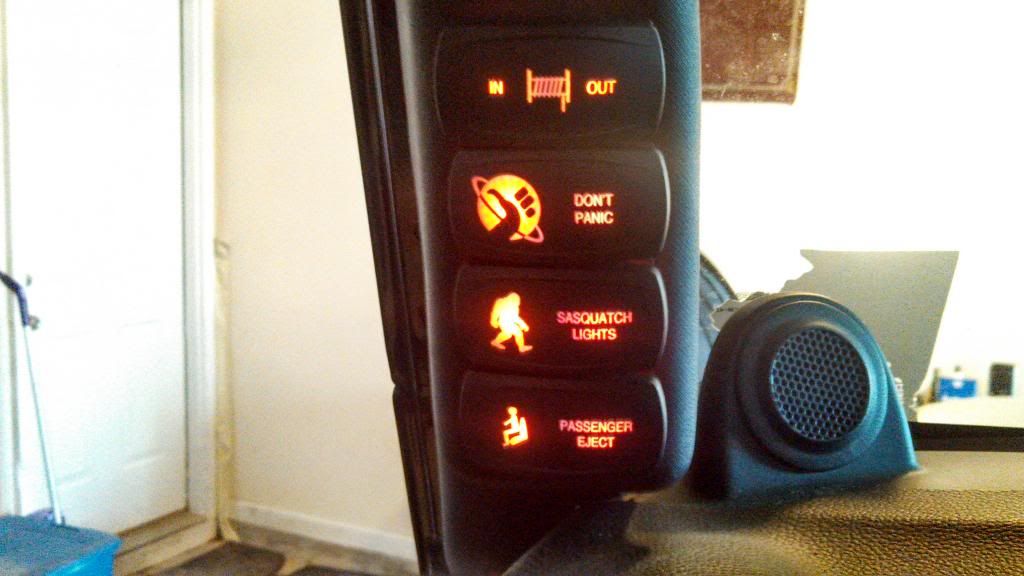

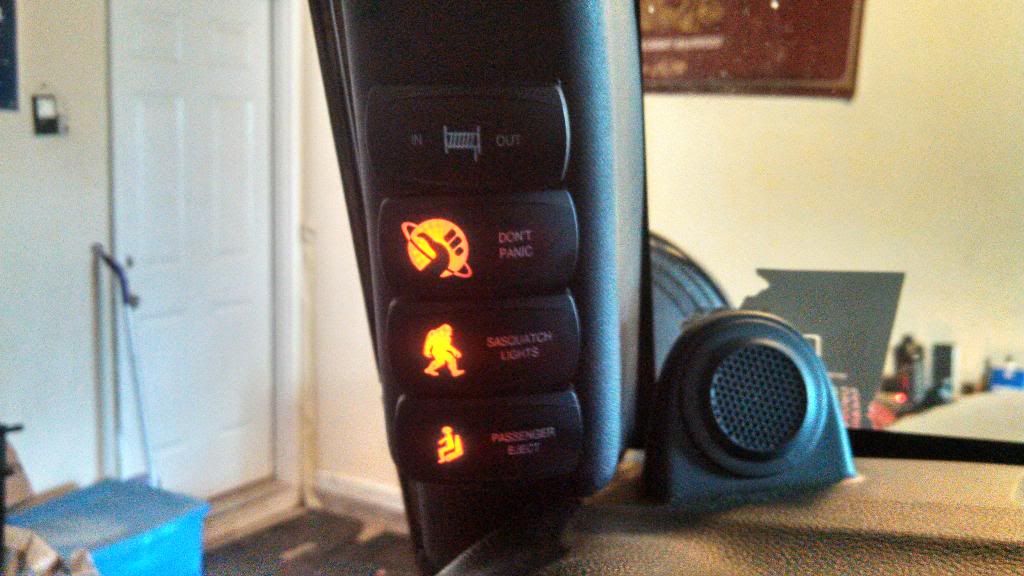

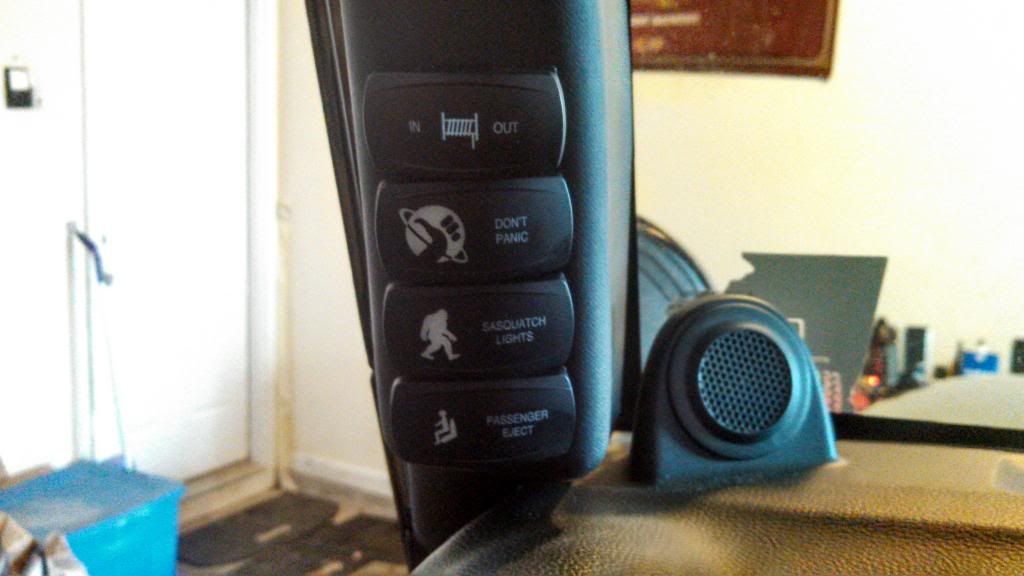

Wired up an in cab winch control and some extra switches today. pretty happy with how they turned out.
![]()
![]()
![]()
![]()
In cab winch control
1 - 20 of 21 Posts
Joined
·
14,592 Posts
Damm nice right there.
Joined
·
1,370 Posts
Love the labels!
Joined
·
489 Posts
Thanks. It's really easy to do. I have a diagram for the wiring if anyone wants it
Joined
·
489 Posts
Otrattw. The switch guys. Call them. Jim is awesome and hell hook you up.
Joined
·
489 Posts
Wiring made simple for ya
![]()
Joined
·
1,370 Posts
Those aren't standard Bosch/Tyco relay pinouts. You using micro-relays with a Bussmann PDU?Wiring made simple for ya
![]()
Joined
·
931 Posts
^^^ x2
Also, did the ORTOW switches just mount right up to the trim peice? I know they wont work w/o mods to the RR panel...
Also, did the ORTOW switches just mount right up to the trim peice? I know they wont work w/o mods to the RR panel...
Joined
·
489 Posts
They are Carling v contura switches.
They fit with some creative cutting. I cut the top and bottom one a little higher so I could tolerance stack them.
They fit with some creative cutting. I cut the top and bottom one a little higher so I could tolerance stack them.
Joined
·
1,370 Posts
Ok, I get it. That's the wiring diagram for the switches, not the relays. Looks like pin 8 is what turns-on the logo LED, right? And you have that connected to the dash lights so its adjustable with the dash? What wire did you tap into on the dash to make that happen?
Joined
·
489 Posts
They don't have a diming setup unless you buy one separate. I tied into the marker light wire.
Joined
·
489 Posts
It doesn't need a dimmer. That's why I bought the amber. The blue is supposedly really bright
Joined
·
415 Posts
Looks great. This is exactly what I'm planning on doing. Just need to order the switches. I already have the RR pillar. GOing to be my recovery panel basically. In-cab winch controls and power switches for the OBA system and on-board welder that is planned for the future.
Joined
·
489 Posts
They have logos for those already or you can make up your own
Joined
·
77 Posts
Looks fantastic man! Good work!
Joined
·
1,824 Posts
Nice job!
Sent by horse and buggy
Sent by horse and buggy
Joined
·
489 Posts
thanks. I'm thinking of adding reverse lights to it. Why does rugged ridge make one for the right a pillar? Seems pointless
No way, they make it so you can yell at your passenger...Right hand drive Jeeps.
![]()
