Powertank Air Toggle Valves

Ok, so I had a couple threads out there about these valves and I decided to go for it. My main goal was to eliminate the electric solenoid provided by ARB (i.e. failure point). A fringe benefit of the swap would be that I'd gain back 2 of my sPod switches.

So, I debated where to put them for a while. Thought about putting them in front of the shifter, but there's not alot of room behind that panel. So, I figured I'd put them just below my center console lid behind my cup holders.

After tearing out my center console, I realized there wasn't nearly enough room in that area for all the plumbing. The valves probably would've hit the storage area and I'd have had to carve a hole in it to allow them room. So, that was a no go. I got to looking and found a perfect location between the cup holders and shifter.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by Charlie View Post
Killing kids is a disgrace, i don't care how little they are.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jeeperjkj is offline
Sponsored Links
Advertisement

post #2 of 16 Old 05-20-2012, 06:18 PM Thread Starter
JKO Addict!

jeeperjkj's Avatar

Join Date: May 2009
Location: Browns Mills, NJ
Age: 42
Posts: 6,233
Garage
Feedback: 7 reviews

Ok, so back to this after a couple days...

There are 5 air lines that need to be run to/from the valves. I ran the line for my rear locker through the firewall where my sPod lines are run and decided there had to be a better way to do it as that wasted ALOT of line.

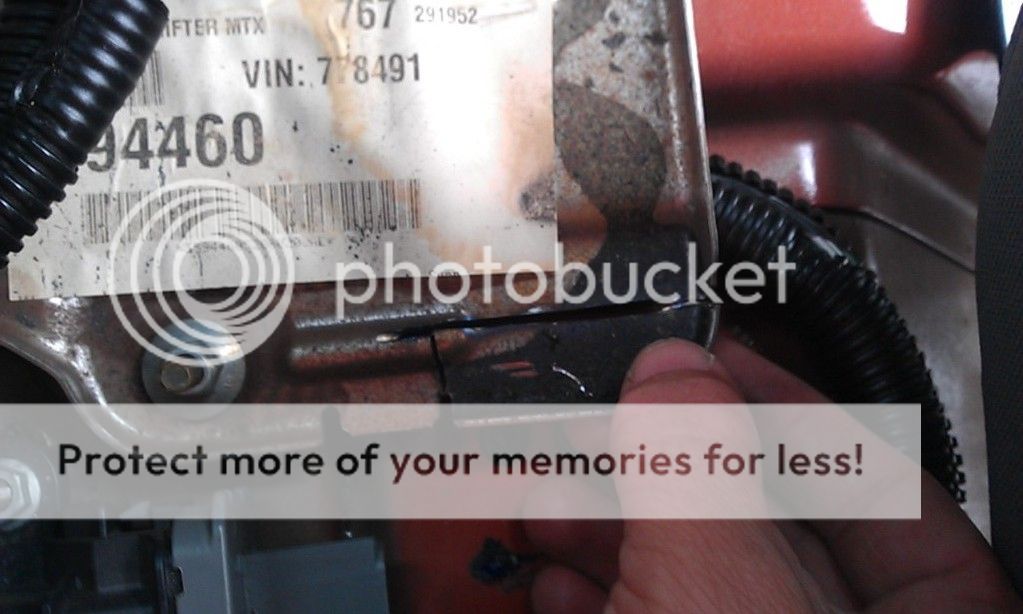

So, after deciding on a location, I had to make it work. First, I had to cut off the corner of the metal plate that surround my shifter.



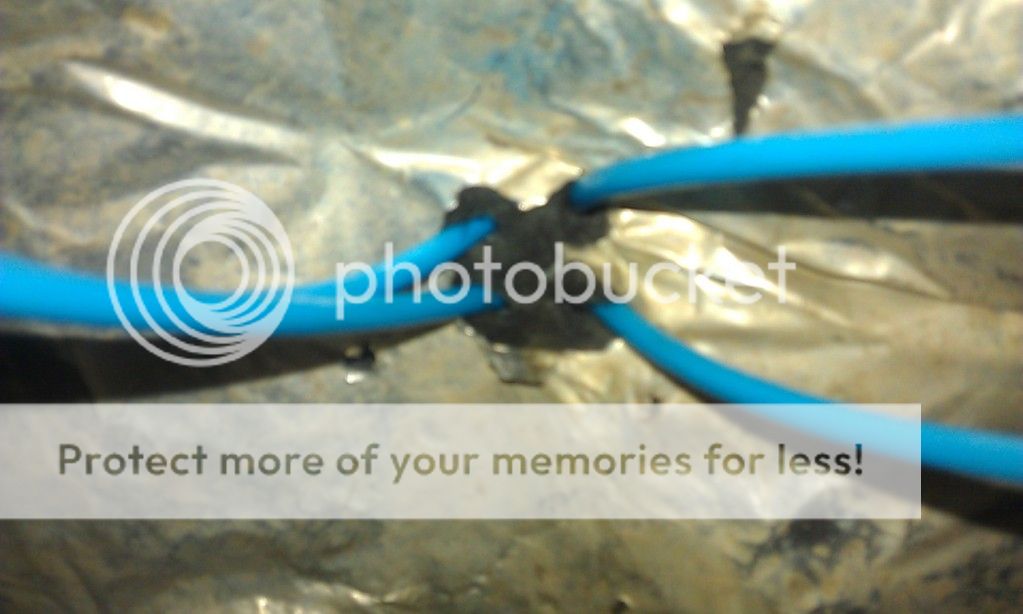

Then, I drilled four holes in the bottom of the Jeep and put some rubber grommets in them.



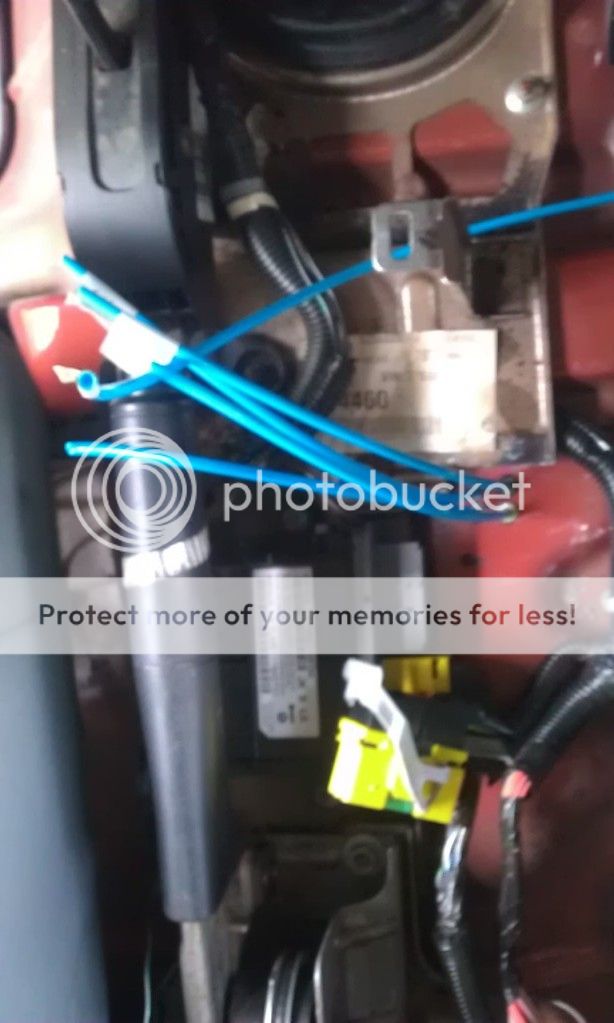

After the holes were set, I fished the ARB air lines through the floor. Be careful when doing this 'cause if you push them too hard, the grommet slips through and you've gotta start it all over. I put a little lithium grease on the hose and pushed it slow and steady through the hole until I got it where I wanted it.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by Charlie View Post
Killing kids is a disgrace, i don't care how little they are.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by jeeperjkj; 05-24-2012 at 07:05 AM.
jeeperjkj is offline
post #3 of 16 Old 05-20-2012, 06:19 PM Thread Starter
JKO Addict!

jeeperjkj's Avatar

Join Date: May 2009
Location: Browns Mills, NJ
Age: 42
Posts: 6,233
Garage
Feedback: 7 reviews

After that, I had to get the switches mounted in the center console.

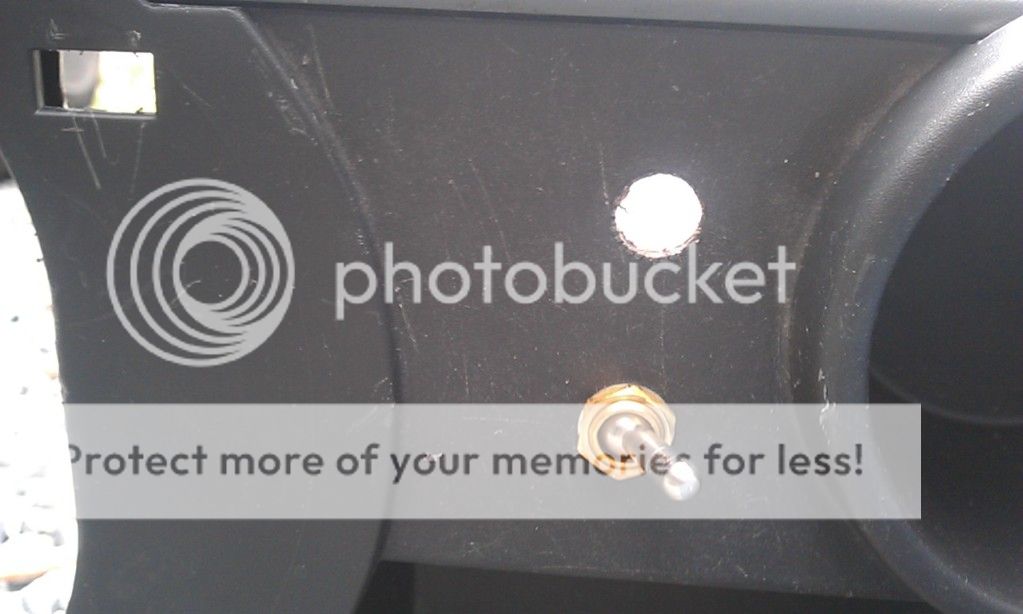

First, I drilled the holes in the upper piece and mocked them up.



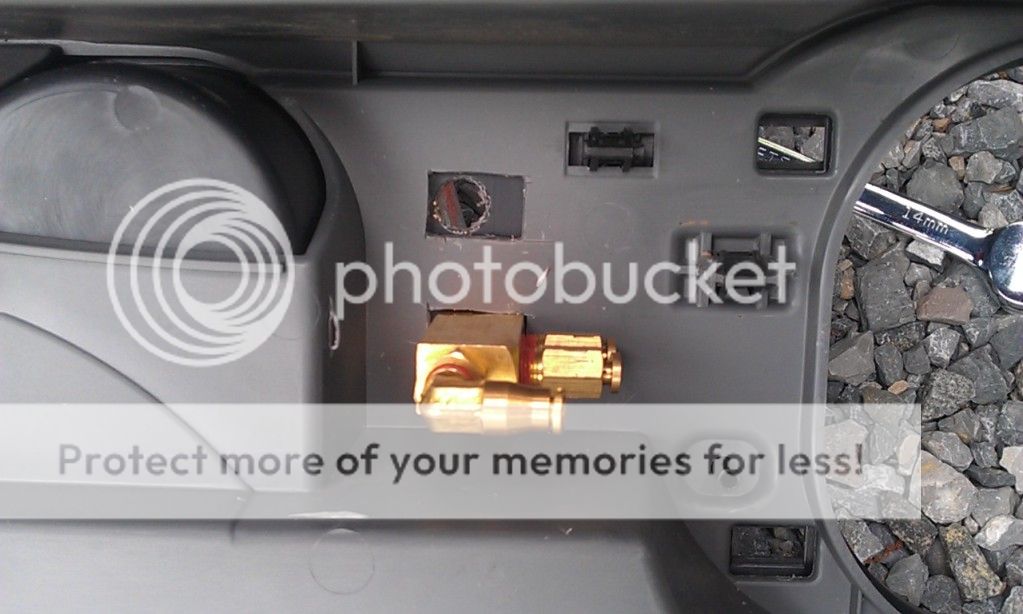

This is what it was gonna look like underneath. Not tons of room, but enough to make things work.



When I first tried to push the threads through both pieces of the console to mount them, I realized that the two pieces of console together were way too thick for the valve threads to make it through and still have enough thread to put the nut on. So, I cut a rectangular hole in the bottom piece that would allow the valves to move up and mount just on the upper piece.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by Charlie View Post
Killing kids is a disgrace, i don't care how little they are.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by jeeperjkj; 05-24-2012 at 07:10 AM.
jeeperjkj is offline
Sponsored Links
Advertisement

post #4 of 16 Old 05-20-2012, 06:20 PM Thread Starter
JKO Addict!

jeeperjkj's Avatar

Join Date: May 2009
Location: Browns Mills, NJ
Age: 42
Posts: 6,233
Garage
Feedback: 7 reviews

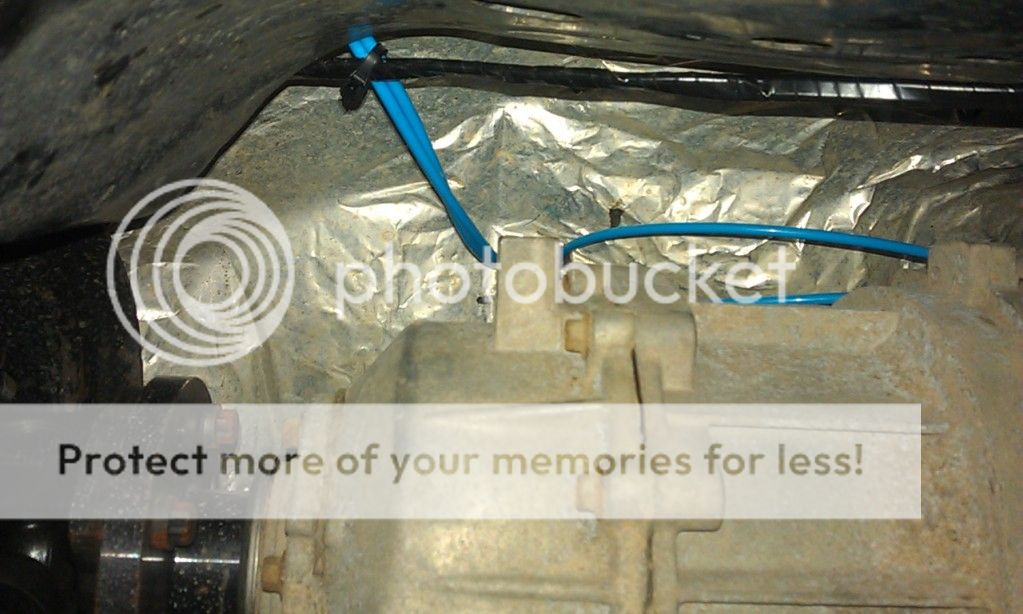

Here are some under shots showing where the air lines come out underneath.







For now, the exhaust lines are simply tucked in behind my gas tank skid.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by Charlie View Post
Killing kids is a disgrace, i don't care how little they are.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by jeeperjkj; 05-24-2012 at 07:13 AM.
jeeperjkj is offline
post #5 of 16 Old 05-24-2012, 07:16 AM Thread Starter
JKO Addict!

jeeperjkj's Avatar

Join Date: May 2009
Location: Browns Mills, NJ
Age: 42
Posts: 6,233
Garage
Feedback: 7 reviews

Ok, so it took me 4 days to get back to it. I'm sorry.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by Charlie View Post
Killing kids is a disgrace, i don't care how little they are.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jeeperjkj is offline
post #6 of 16 Old 05-25-2012, 12:55 PM
JKO Addict!

BADGER's Avatar

Join Date: Mar 2009
Age: 44
Posts: 2,579
Feedback: 0 reviews

Looking good. Hopefully some folks will see this and get some mileage out of it. For some reason no one uses these things, they'd rather deal with solenoids, wiring, junction blocks, multiple regulators, and all kids of other crap. I'll take the simplicity of the mechanical pneumatic switches any day.

A society that puts equality before freedom will get neither. A society that puts freedom before equality will get a high degree of both.
-Milton Friedman
BADGER is offline
post #7 of 16 Old 05-25-2012, 05:02 PM Thread Starter
JKO Addict!

jeeperjkj's Avatar

Join Date: May 2009
Location: Browns Mills, NJ
Age: 42
Posts: 6,233
Garage
Feedback: 7 reviews

I finally got my red switch covers on today. Little bling, bling for them...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by Charlie View Post
Killing kids is a disgrace, i don't care how little they are.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jeeperjkj is offline
post #8 of 16 Old 06-26-2013, 05:18 PM
JKO Addict!

Thisguyhasadd42's Avatar

Join Date: Aug 2011
Location: Chicago, Ill
Age: 30
Posts: 2,533
Feedback: 1 reviews

Seeing i have never seen this switch before, i take it there is a line that runs from the compressor to it the to the locker? You mentioned an exhaust line, is that the third port? Where did you get your switch covers? I would hat to bump into a switch running down the highway at 70+. Thanks for the info, i too like the idea of eliminating the electronic failure from the arb.

2010 Mango 2dr 6spd Rubicon
PSC BFH front and rear, Warn 9.5cti with viking synth line, Rigid duallys, RROR full skid,
RK 2.5 max travel pro with RRDs, 37" Nitto Trail Grapplers, Tera 44 front, Tera 60 rear with 4.88s
Thisguyhasadd42 is offline
post #9 of 16 Old 06-26-2013, 05:42 PM Thread Starter
JKO Addict!

jeeperjkj's Avatar

Join Date: May 2009
Location: Browns Mills, NJ
Age: 42
Posts: 6,233
Garage
Feedback: 7 reviews

In this pic...



the air goes IN from the tank to the switch on the right in the port facing upwards. The next port down on the right switch simply runs over to the adjacent port on the left switch. The two bottom ports are the exhaust and the port that sends air to the locker.

The covers are optional. Even if you bumped the switch at highway speeds it wouldn't engage the locker unless you left the tank full of air all the time.

If you just use one ARB, then you'd simply get the switch on the left and run the line in the top port.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by Charlie View Post
Killing kids is a disgrace, i don't care how little they are.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by jeeperjkj; 06-26-2013 at 05:48 PM.
jeeperjkj is offline
post #10 of 16 Old 06-26-2013, 06:00 PM
JKO Addict!

Thisguyhasadd42's Avatar

Join Date: Aug 2011
Location: Chicago, Ill
Age: 30
Posts: 2,533
Feedback: 1 reviews

so just running one arb in the rear i would only need the "right" switch in your photo to operate it correct? Id be running the arb single 12 volt compressor under the hood oppose to your power tank, would flipping this switch do the same thing? I guess i am confused as to how a pneumatic switch will turn on the compressor under my hood instead of an electronic one.

2010 Mango 2dr 6spd Rubicon
PSC BFH front and rear, Warn 9.5cti with viking synth line, Rigid duallys, RROR full skid,
RK 2.5 max travel pro with RRDs, 37" Nitto Trail Grapplers, Tera 44 front, Tera 60 rear with 4.88s
Thisguyhasadd42 is offline
post #11 of 16 Old 06-27-2013, 04:09 AM Thread Starter
JKO Addict!

jeeperjkj's Avatar

Join Date: May 2009
Location: Browns Mills, NJ
Age: 42
Posts: 6,233
Garage
Feedback: 7 reviews

No, you'd use the left switch if you only used one.

The pneumatic switch won't turn on the compressor. My compressors are turned on by my sPod. The switch is just to control the air going to the locker(s).


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by Charlie View Post
Killing kids is a disgrace, i don't care how little they are.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jeeperjkj is offline
post #12 of 16 Old 06-27-2013, 03:50 PM
JKO Addict!

Thisguyhasadd42's Avatar

Join Date: Aug 2011
Location: Chicago, Ill
Age: 30
Posts: 2,533
Feedback: 1 reviews

Is the pneumatic switch sort of a fail safe, instead of have the spod turn the compressor on and controlling the air? Sorry for all the questions, never used a spod or an arb. Thanks

2010 Mango 2dr 6spd Rubicon
PSC BFH front and rear, Warn 9.5cti with viking synth line, Rigid duallys, RROR full skid,
RK 2.5 max travel pro with RRDs, 37" Nitto Trail Grapplers, Tera 44 front, Tera 60 rear with 4.88s
Thisguyhasadd42 is offline
post #13 of 16 Old 07-02-2013, 06:52 PM Thread Starter
JKO Addict!

jeeperjkj's Avatar

Join Date: May 2009
Location: Browns Mills, NJ
Age: 42
Posts: 6,233
Garage
Feedback: 7 reviews

Quote:
Originally Posted by Thisguyhasadd42 View Post
Is the pneumatic switch sort of a fail safe, instead of have the spod turn the compressor on and controlling the air? Sorry for all the questions, never used a spod or an arb. Thanks
Sorry, I haven't been around much lately. The pneumatic switch is not so much a fail safe as it is just a way to eliminate one failure point (the electric solenoid). Much simpler design.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by Charlie View Post
Killing kids is a disgrace, i don't care how little they are.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jeeperjkj is offline
post #14 of 16 Old 11-13-2013, 08:46 PM
Granite Guru

Join Date: May 2011
Location: ATL
Posts: 185
Feedback: 0 reviews

Looks great, I used similar switches in the tj. I like the non solenoid operation as well.

'17 Unlimited
'03 TJ
inline6 is offline
post #15 of 16 Old 12-06-2013, 07:52 AM
Rock God

Join Date: Apr 2010
Location: Rocky Mountains
Age: 58
Posts: 568
Feedback: 0 reviews

My installer puts them under the side of the drivers seat. This way, they are easy to reach but out of the way so they aren't inadvertently switched on. Front one for front, rear one for rear.
Attached Images

Vince1 is offline
post #16 of 16 Old 12-24-2013, 03:59 PM Thread Starter
JKO Addict!

jeeperjkj's Avatar

Join Date: May 2009
Location: Browns Mills, NJ
Age: 42
Posts: 6,233
Garage
Feedback: 7 reviews

Quote:
Originally Posted by Vince1 View Post
My installer puts them under the side of the drivers seat. This way, they are easy to reach but out of the way so they aren't inadvertently switched on. Front one for front, rear one for rear.
Very good idea. If I ever move mine for any reason (if I get a center console or something), then I might think about that location. Looks good.
