Poly Performance Fuel tank skid plate install

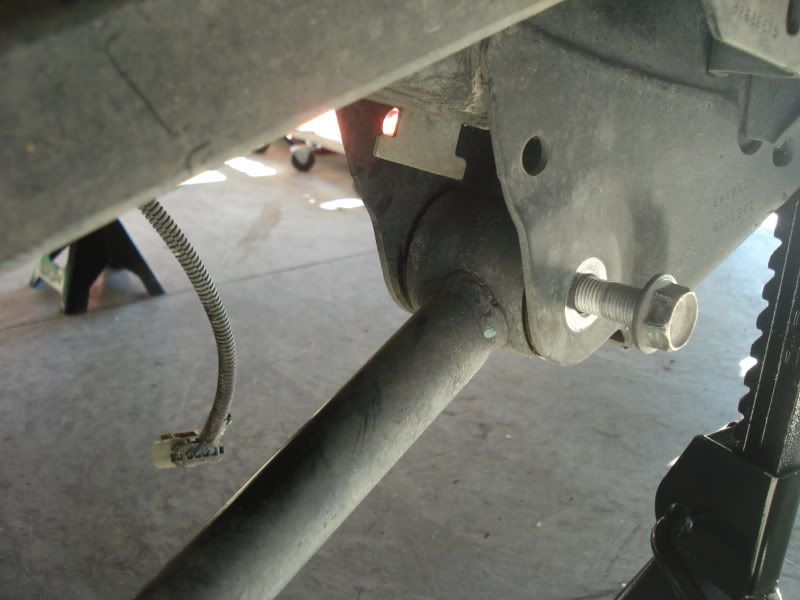

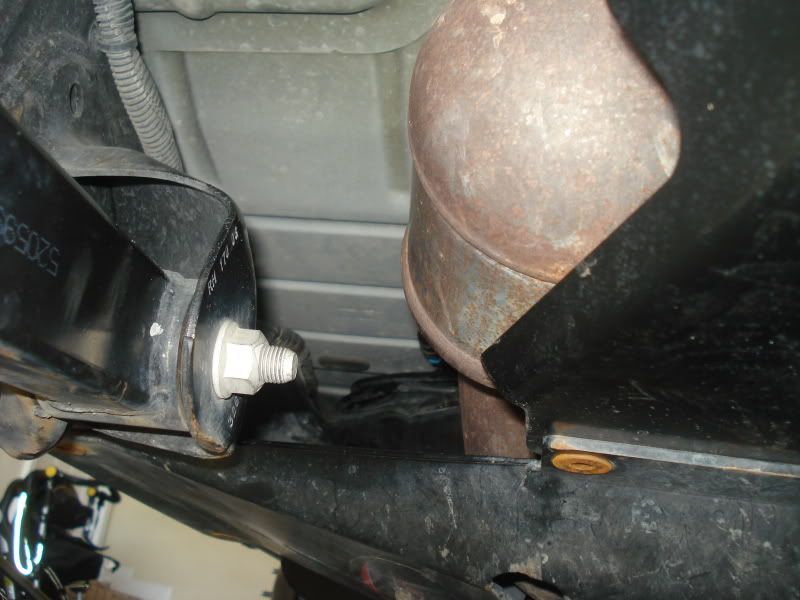

I started without my camera, so these pics are of the actual install. Poly Performance recommends removing the passenger rear coil and the driveshaft at the pinion. For this, I only removed the coil and had no issues. Before dropping the tank, the passenger rear lower control arm bolt at the frame needs to be flush with the CA mount, so remove the nut and back it out about an inch and a half.

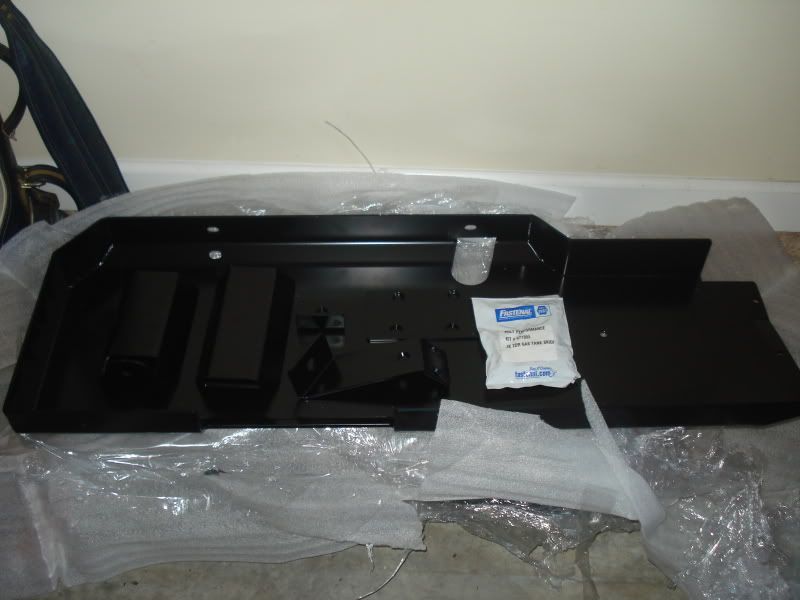

Here's the pieces. Like the instructions said, I made the 3/8" bolts (allen heads) finger tight and left the 1/2" hex bolts really loose.

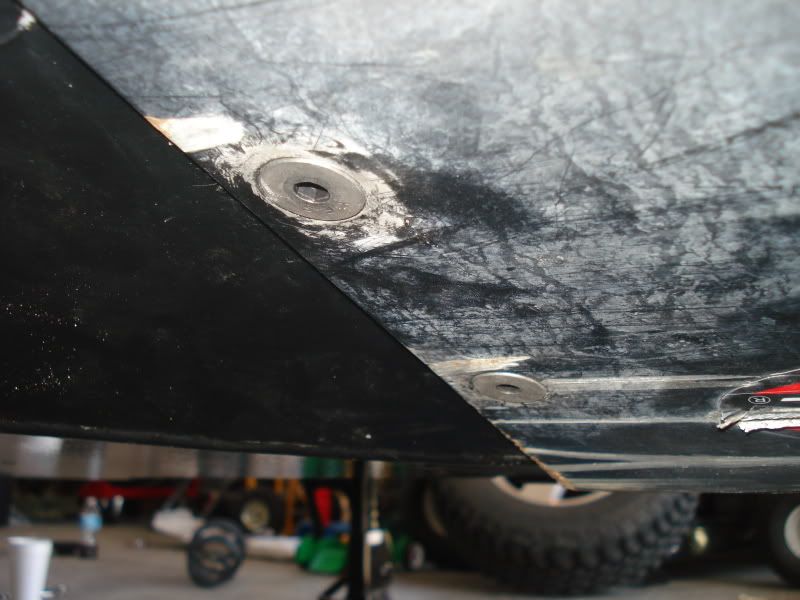

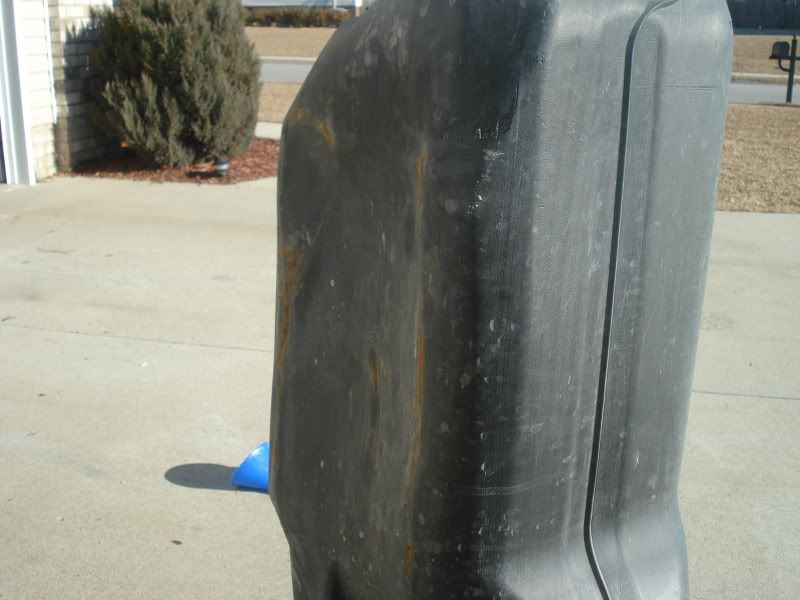

Here's a pic of the dent that I had from the failure of the factory skid. I'm hoping that it'll pop itself out.


Assembled and ready to install...


I was able to get this done with my floor jack, but I had to really lift awkwardly, plus I put a few scratches in the powdercoat... Big deal, It's a skidplate! I didn't rattle can because there was no bare metal.

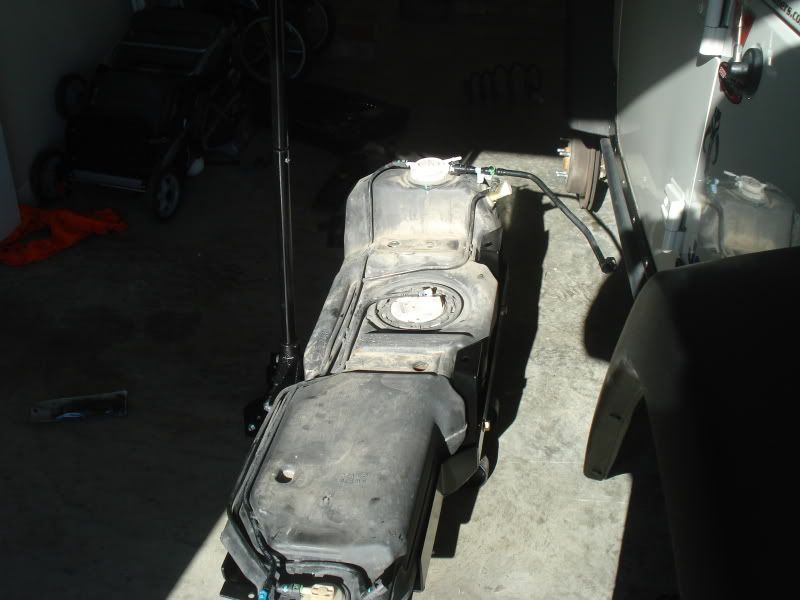

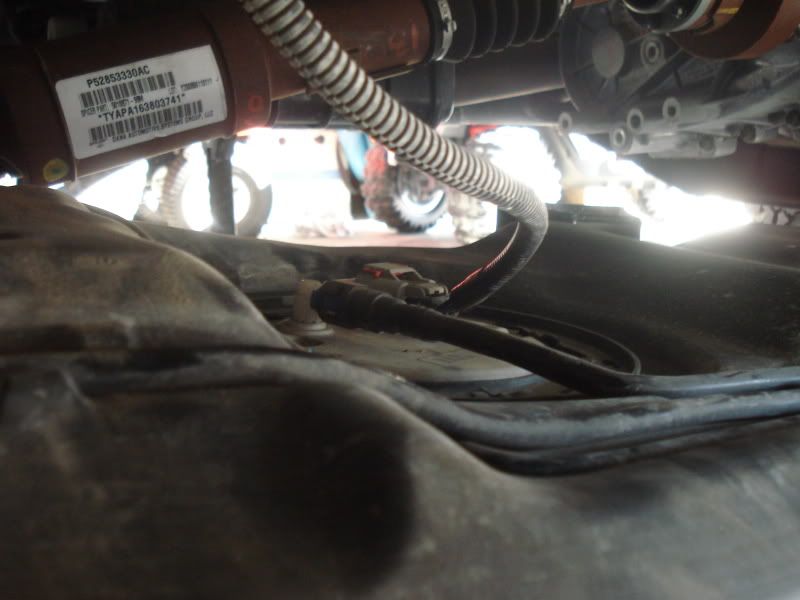

This picture shows the fuel pump hook up. It's a connection just like our doors, so no need to explain it. (

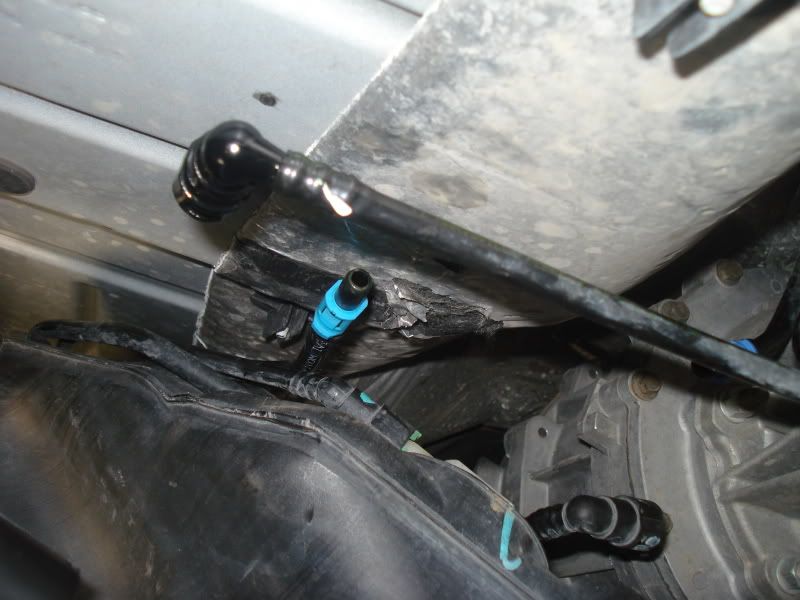

Here are the 2 connections in the front that need to be reconnected. They're different, but they just push together. I had to really work squeezing them off to drop the tank, but my li'l fingers were cold.



Quote:
Originally Posted by Gotlime? View Post
Did you just search for "gay" or "halo" and bump those threads?
JohnnyWalker is offline
Sponsored Links
Advertisement

post #2 of 6 Old 01-23-2011, 06:20 PM Thread Starter
JKO Addict!

JohnnyWalker's Avatar

Join Date: Nov 2008
Location: Fayetteville, NC
Age: 44
Posts: 2,293
Garage
Feedback: 1 reviews
Send a message via Yahoo to JohnnyWalker

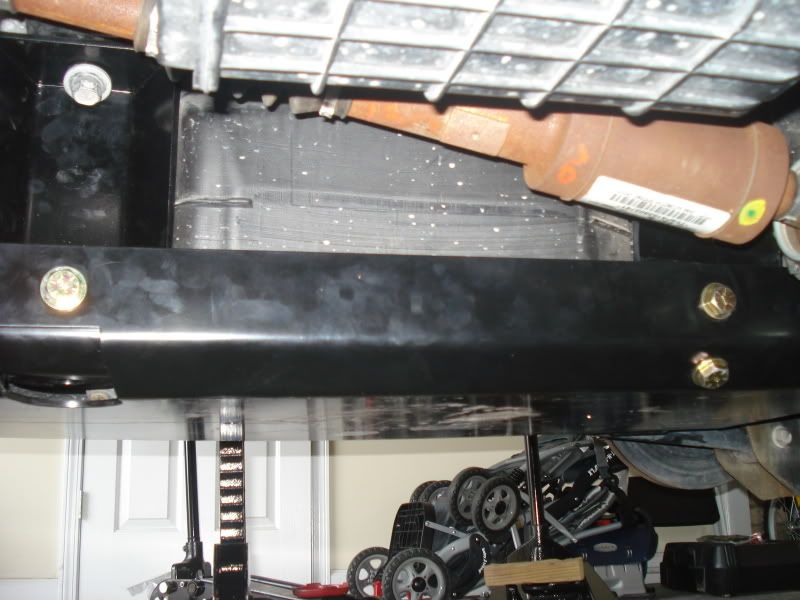

Here's the part where it got tricky for me. I'm already running the Poly Performance transmission skid, so the front Fuel tank skid has to rest on top of the Transmission skid. I was able to get it up there, and the rear of the assembly level through trial and error. Remember, I was by myself and another set of hands would of really helped out, but I got it done. This presented the problem of starting the two 3/8" countersunk bolts that attached the front of the fuel skid to the rear of the transmission skid.

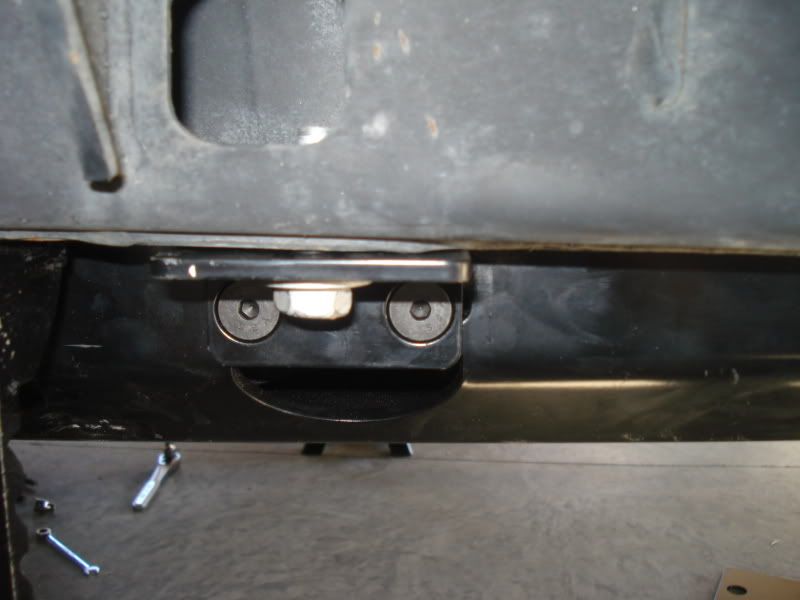

The only way to reach it is through an access beside the passenger downpipe. I have skinny arms so I was able to reach, but it was extremely tight.

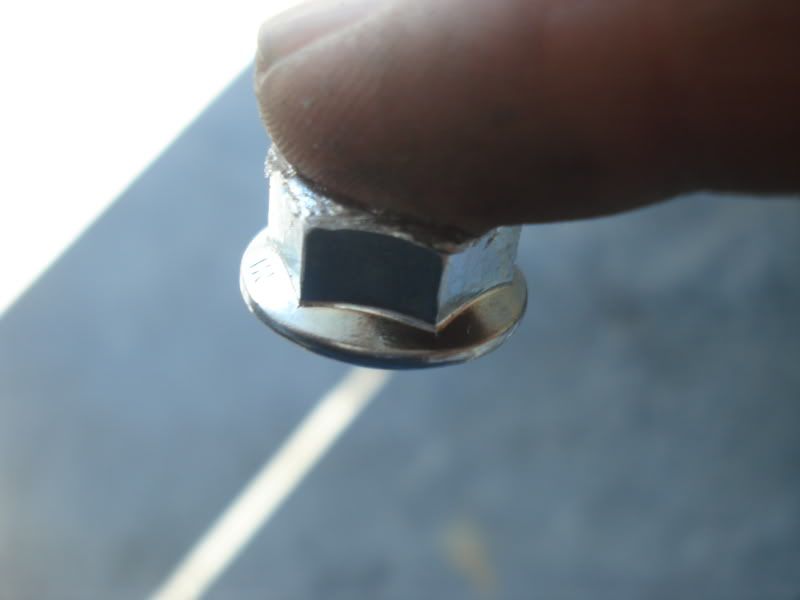

Then, I couldn't get the nut over the transmission crossmember and I didn't have my magnet? Whatever will I do? I got my trusty tube o' Goop and tacked it to my finger... with excellent results.

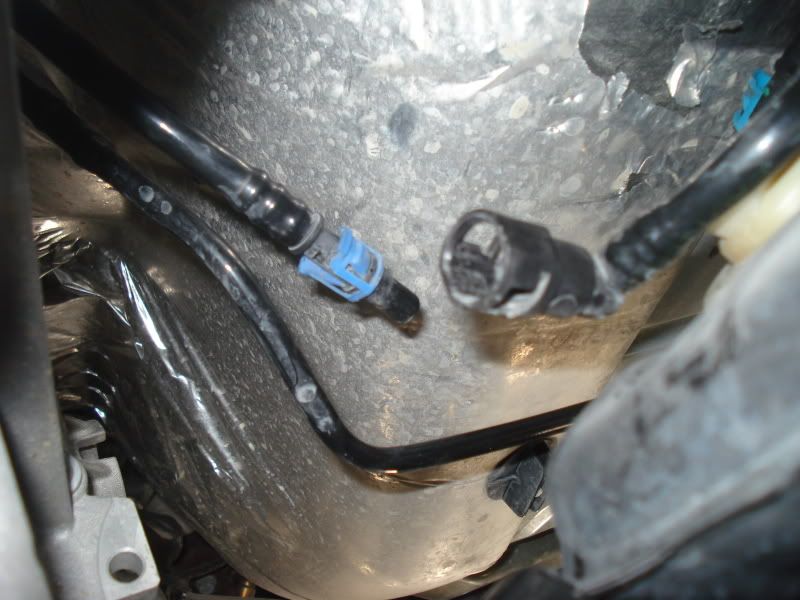

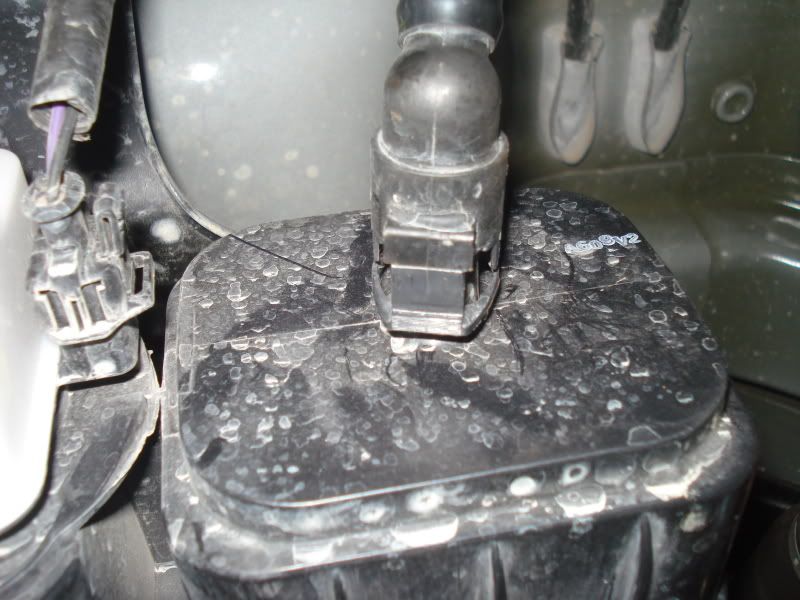

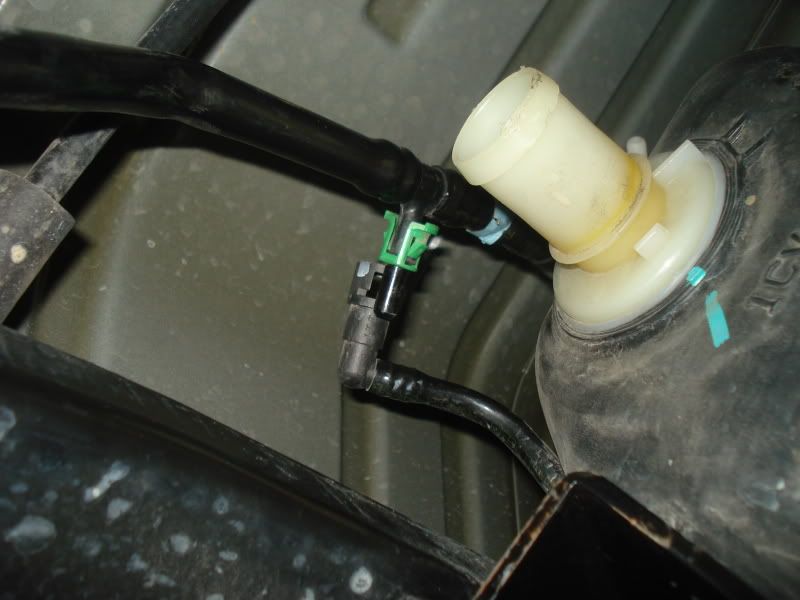

Next, I made the connections at the rear of the tank, first pic is the evap, then the fuel filler hose and I'm not sure what the other one is in the second pic. There is also a connection at the top of the tank on the line with the T valve that I didn't get a picture of.



Finally, I tightened everything down. I should mention that it took a little raising and lowering of the assembly to get the bolts started. It also uses the stock mounting bolts.



I had every intention of installing my transfer case skid today, but the playoffs were on. Total time of install was about 6 hours, but totally worth it. This thing is really thick and heavy (TWSS) and I fully expect it to work as designed. Oh, here's a link to my Poly Performance Oil pan skid install. https://jkowners.com/forum/showthread.php?t=41083
