River Raider Breather Extension Kit

This write up is for a 4dr Automatic. The kit comes with everything you will need to tie both axles, transmission, and the transfer case all into the stock airbox using a central line that runs from the rear axle to the airbox.


Prep work is little more than screwing the white barb connectors into the threaded female part of the T-barb connectors. This is made easy utilizing a 15/16th deep socket.


Now starting with the stock breather hose from the block to the airbox; cut the hose and insert the triple barb connector. Now connect the 8ft section of hose to the remaining barb of the mentioned connector


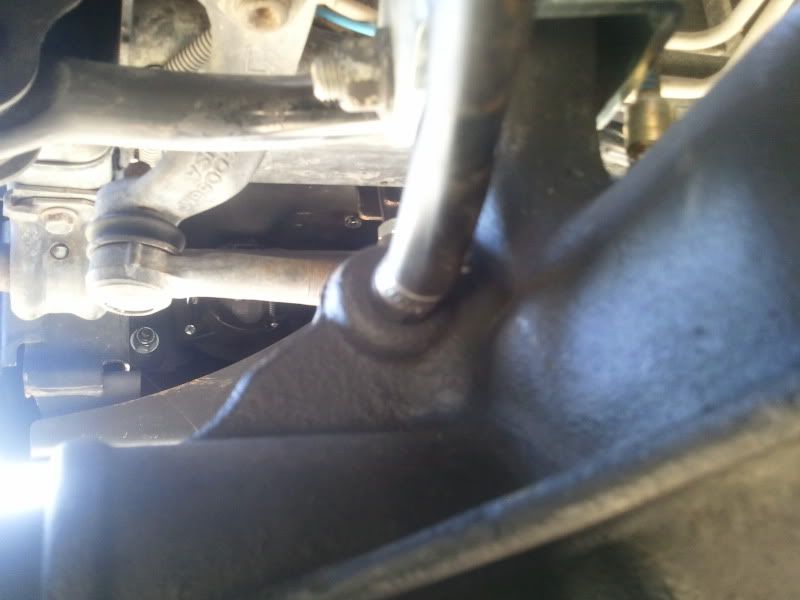

Next drop the main line hose down through to the front axle. I ran mine to hug the passenger side of the frame. Next locate the front axle breather, it should be located behind the driver spring mount. Now run it over to the passenger side to tie it into the main line. Supplied with the kit is a small hose with a double barb connector to extended this hose if you feel you need to.


Now the PITA part of the job. The automatic transmission breather is located on the passenger side and runs halfway up between the firewall & the block. I found after the fact that the easiest way to access this area was through the passenger wheel well by pulling back the inner fender liner. Even then I finally had to give up trying to free the end of the hose completely from the ziptie holding it in place and instead cut the hose leaving about 2" hanging from the block. Next I used the small supplied hose that I mentioned above as an extension to reach the main line.

With that now done I moved to the Transfer Case; Though the breather connection on the case was easy to locate, getting it free of the ziptie again proved to be a PITA though not as bad as the transmission was. The end of this hose is located on the driver's side and again between the block and the firewall. Once you have this free run it over the transfer case to the main line and connect it.

Note: Nether of the above stock hose locations are easily seen from the top of the motor. You will have to feel for them.


Now with the hardest part behind me, I continued to run the main line along the frame rail via the top of the gas tank. Just in front of the rear wheel well I routed the hose to the middle of the Jeep and loosely tied it to the E-brake lines.


Now with the end of the mainline over the rear axle, I pulled the rear axle breather from its stock position and trimmed the hose of about 7". Leaving a loop for axle travel I attached the axle hose to the mainline.


With everything connected, I walked through the entire system checking for any contact with moving parts and/or high temp parts (i.e. Catalytic Converter).

Finally and most important.....I slapped my fancy little RR sticker on the Mule! Even with the troublesome Transmission hose and a brief rain shower the install took about an hour or two. Keep in mind that time is with out a lifted suspension or car ramps to elevate the Jeep at all so clearance with a creeper was at a minimum.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
/
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by Loki646; 05-30-2010 at 05:19 PM.
Loki646 is offline
Sponsored Links
Advertisement

post #2 of 10 Old 09-02-2010, 06:32 AM
Granite Guru

redcat's Avatar

Join Date: Jul 2009
Location: Minneapolis, MN
Age: 54
Posts: 230
Garage
Feedback: 0 reviews

Great write up - this helped greatly with the install we did last night with the 'Smilin' Bob's Breather Hose Extension Kit' from River Raider. This was preformed on a 07 2 door Wrangler X with a six speed. It was fun, again thanks for your write up!

07 X 2 door
Red Rock Crystal

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
www.militaryjeepers.com
redcat is offline
post #3 of 10 Old 09-07-2010, 01:47 PM
Rock God

joePILE's Avatar

Join Date: Aug 2009
Location: Parsippany, NJ
Age: 36
Posts: 1,696
Garage
Feedback: 2 reviews

thinking about getting this as well

4 door auto...this should prove to be very helpful

2008 BLACK Unlimited Sahara
Poly Performance 3"on 35" Xterrains and 15" Soft 8s, Front Pro Rock 44, FLW Front Prerunner, FLW Rear Bumper, FLW Rock Sliders, River Raider Gen2 Snorkel, Superior 5.13s,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
and
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
joePILE is offline
Sponsored Links
Advertisement

post #4 of 10 Old 09-08-2010, 01:28 PM
Granite Guru

Join Date: Aug 2009
Location: florida
Posts: 214
Garage
Feedback: 0 reviews

I just did mine the other day and the directions on it are very limited. I did the 2 axles and the transfer case and then I was thinking to myself why do I have an extra connection? thanks to the writer.
tfire is offline
post #5 of 10 Old 12-01-2010, 05:54 PM
JKO Addict!

Mr.RonGilbert's Avatar

Join Date: Feb 2009
Location: Houston
Age: 49
Posts: 9,139
Garage
Feedback: 6 reviews

I took advantage of doing mine while I did the Poly Performance LA kit and RROR skids - it was on a lift and the gas tank was removed - not that it is necessary at all, all of this could have easily been done in the drive way on a creeper.

I had already installed the AEV snorkel and sealed the air box so I just tied the breathers into the air box:

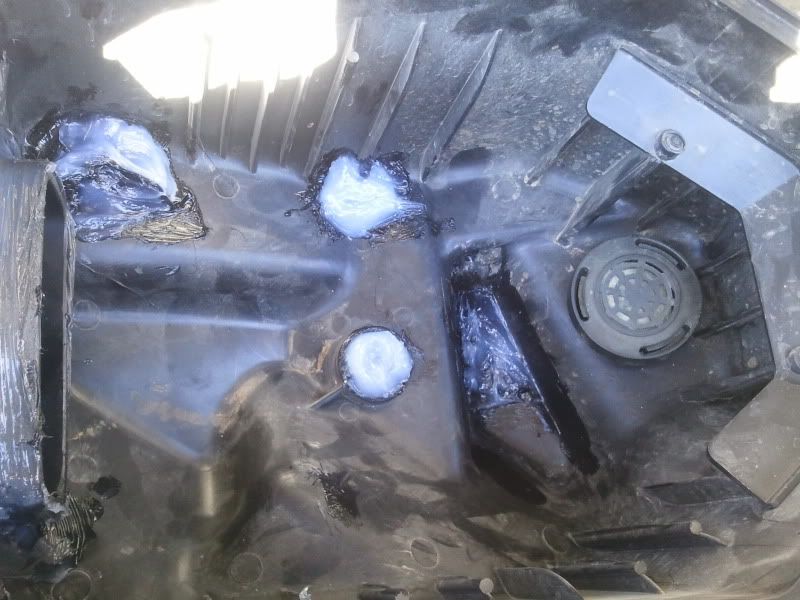

I cleaned the area where the four holes are at in the air box, three are where it mounts under the hood and the fourth is a little drain hole. I added some silicone to each hole - followed it up with some more silicone (black first then clear... no reason other than it was what I had). The breather tubes are tied in where the little round filter is at, I had an extra one from my air tank compressor.



I also added some hose clamps to keep everything where it should be. TK suggested that I add a couple of clamps on the smaller of the two hoses that run from the air box to the motor.

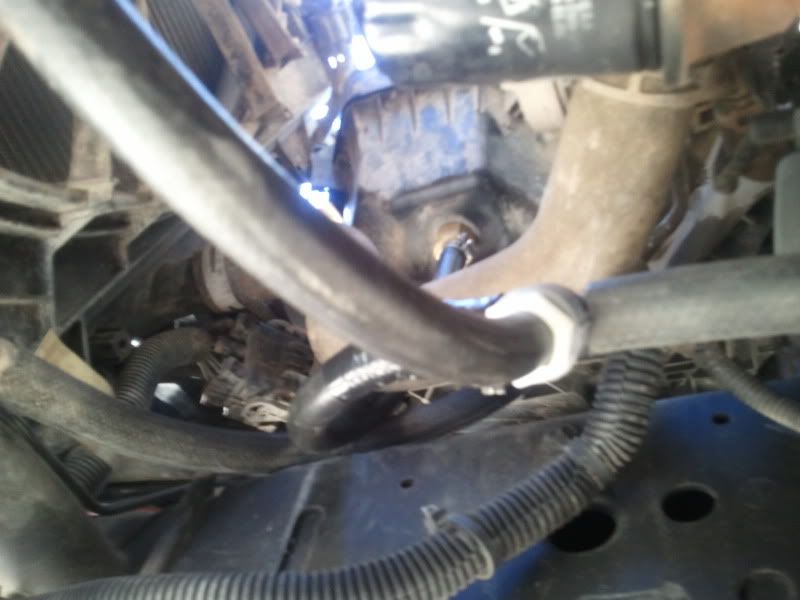

You can see where the front breather hose ties in with the rest then they all go up to the bottom of the air box - I added a hose clamp to the hose that went into the air box - the others are plenty tight.
