post #1 of 18 Old 11-19-2014, 05:58 PM Thread Starter
Rock God

pizzaman's Avatar

Join Date: Aug 2009
Posts: 1,593
Garage
Feedback: 0 reviews
Raxiom Radio/Nav unit installation

Forgive the lack of pics throughout the process, but once you read everything, you'll see it's not needed.

So i had the basic stock radio (no bluetooth, not alpine, etc) and i hated not having my iPod/bluetooth stuff. I had debated on what I wanted to do, and ultimately decided to go with a nav unit too just for the convenience of having in dash nav also.

The reasons I chose the Raxiom:
-Looks pretty close to OEM (i didnt want anything too flashy for to catch thieves' eyes)
-Backup camera included with the unit
-Both front AND rear USB ports
-Forum discount
-bluetooth
-iPod controls built in
-sat radio ready (if i decide i want to activate it)
-preamp outs
-nav
-Literally plug and play unit

The installation:
be warned, step by step instructions are not included. the radio does have a very detailed diagram explaining the wiring harness and what each port is (it's idiot proof-color coded connectors to ports and they're all different sizes, you can't plug a connector into the wrong port)

1. Prep your radio. There is a wire with a pos and neg that ultimately leads to the camera that you need to connect to the main wiring harness prior to installation. I added a male connector to the pre-stripped wires on the camera cord and they plug directly into a free flying pos and neg (already with female connectors) in the new main wiring harness. Then plug the main harness into the radio, the a/v harness for the camera, the sat radio antenna (if desired), and the steering wheel controls connector. So to recap, i just connected a positive and negative wire for the camera, and plugged in the different connectors coming from the main wiring harness.

2. Remove dash. There are videos out there so i won't go into detail, but remove the kick panel below the steering wheel, the tray above the radio and the window controls module, then take out the 4 7mm bolts that hold in the upper dash, give it a good tug and it's off (that's what she said). also, remove the glove box.

3. Remove old head unit. 4 more 7mm bolts and a disconnect the harness, the antenna(s) and again, give it a good tug. radio is out.

4. run your GPS antenna and the microphone for the bluetooth. (note i have no idea how this works if you already have the stock mic, but i dont think it works with this unit. i THINK you need to use the one included). I include both of these in the same step because i ran them to the same place. The mic is clipped on top of the a pillar plastic, and the GPS antenna is on top of the roll bar above the A pillar under the roll bar padding. route the wires down the side of the a pillar, under the steering wheel and up to where your radio will be. here is the mic. the GPS antenna is directly on top of that roll bar (not pictured)



5. Plug it all in. The mic, the gps antenna, the new wiring harness to the jeep's main connector, the am/fm antenna, the a/v for the camera and anything else you decide to use (there are zone 2 controls if you are installing monitors in the back or other stuff like that. also, if you have subs or anything you would want to wire in, now would be the time. i also plugged my iPod cord into the rear USB and ran it to the glove box to keep my ipod out of sight. now here is the shitty part, there is very little room for this massive new wiring harness and all the other crap, so you have to be patient and just maneuver everything into a spot until you can slide the unit all the way in. I also ran the wires that lead to the camera out behind the dash over to underneath the passenger side front speaker.

6. replace 4 7mm bolts to hold the head unit in.

7. run the camera wires to the rear. i just when under the carpet and plastic trim pieces on the passenger side all the way to the back to where the hardtop wiring harness is/would be. i did plug the camera in to make sure it works, but have not installed it yet. I need to decide where/how i want to mount it. it's a bullet camera, and i think i just want to flush mount it to the back bumper, but need to do more thinking first. good news is it works and once you set the reverse trigger setting, it activates when you throw the jeep in reverse. Camera installation in post below

8. button up your dash. snap it back in, replace 4 remaining 7mm bolts, replace kick panel, upper dash tray, and power window module.

9. and enjoy your handy work. feel free to customize the display (colors and such), pair your phone, take pictures, watch porn on it (if you have DVD pornos any more) or whatever.

after a few hours of playing around with it, i love it. the bluetooth is awesome. it accesses your contacts and all that. fully integrated with my ipod, i can search, view playlists, see all my songs, etc. no complaints so far.

Props to Ryan at ExtremeTerrain for answering my questions, providing the discount and being very responsive. shipping was quick, product is great, couldnt be happier. steering wheel controls all work, although when working the iPod, the left up/down is now fast forward/rewind, not skip forward skip back. the track is changed by pressing what is normally the preset toggle (button behind left side of wheel between up and down)

here are two videos that may or may not help:
https://www.youtube.com/watch?v=d3pcrw7Ingg
https://www.youtube.com/watch?v=ds58NrtGQfc

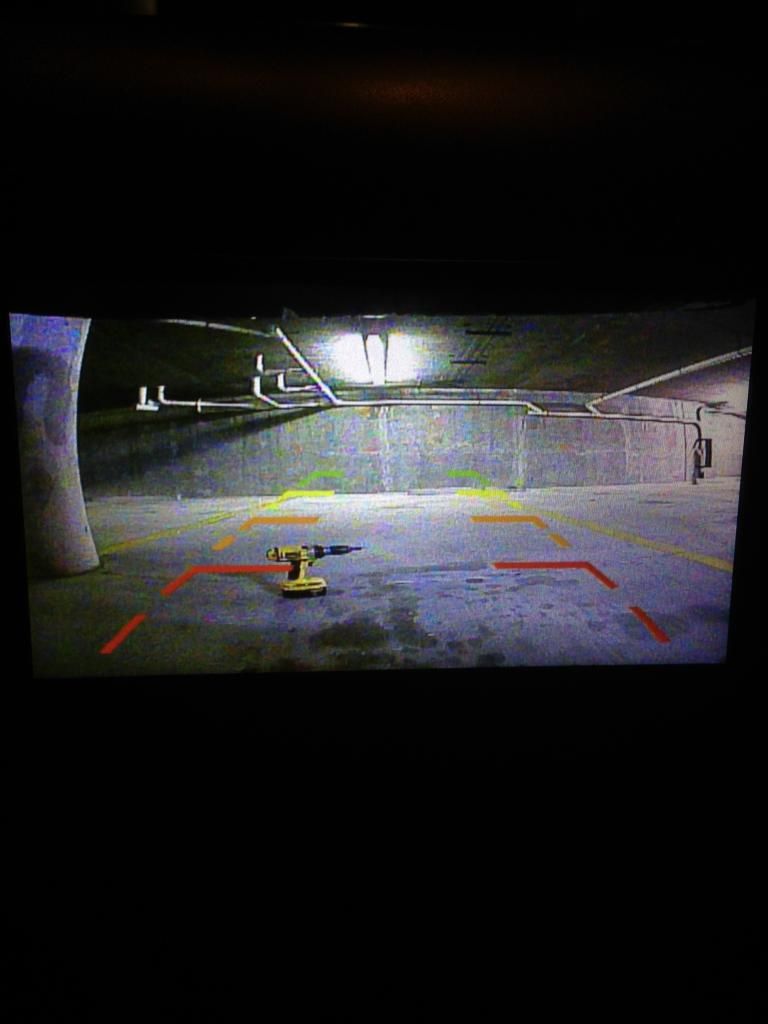

pics when it was all done. if you end up doing this and have questions, feel free to PM me. im sure i missed a step or something in there, but again, super easy.



(clock is wrong because i havent left my parking deck for the gps to get a signal and that is how the clock is set).


i know that gap on the left side looks bad, but the flash just got it at the worst possible angle. the space between the actual unit and trim is same as stock.



Life's hard. It's harder if you're stupid.

Last edited by pizzaman; 11-21-2014 at 05:44 PM.
pizzaman is offline
Sponsored Links
Advertisement

post #2 of 18 Old 11-19-2014, 07:51 PM
Wheeler

Join Date: Jan 2010
Age: 62
Posts: 42
Feedback: 0 reviews

Nice write up. I'm with you on this unit. The price is right, the system works great, it looks factory, and it was true plug and play install. I have had mine in for nearly a month and like it more every time I use it! There is also a site to create a personalized splash screen, and updating the maps was pretty straight forward.
wrangled is offline
post #3 of 18 Old 11-20-2014, 06:32 AM
Granite Guru

XTJake's Avatar

Join Date: Dec 2012
Location: Malvern, PA
Posts: 302
Feedback: 0 reviews

Great write-up! Thanks for putting that together. You did an awesome job and the outcome looks great. I'm glad to hear that you love the unit. I knew you would!

If anyone else is interested in picking up a Raxiom Navigation System just shoot me a PM and I'll get you a great deal!

-Ryan

Jake R. |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Off-Road Outfitters

Toll Free: 800-988-4605 | Mon-Fri 10AM-6PM EST
Free Shipping on Orders Over $75!
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

PM me for our JKOwners Discount Code (must have 25 posts) or Price-Matching!
XTJake is offline
Sponsored Links
Advertisement

post #4 of 18 Old 11-21-2014, 06:03 PM Thread Starter
Rock God

pizzaman's Avatar

Join Date: Aug 2009
Posts: 1,593
Garage
Feedback: 0 reviews

part 2: the camera installation

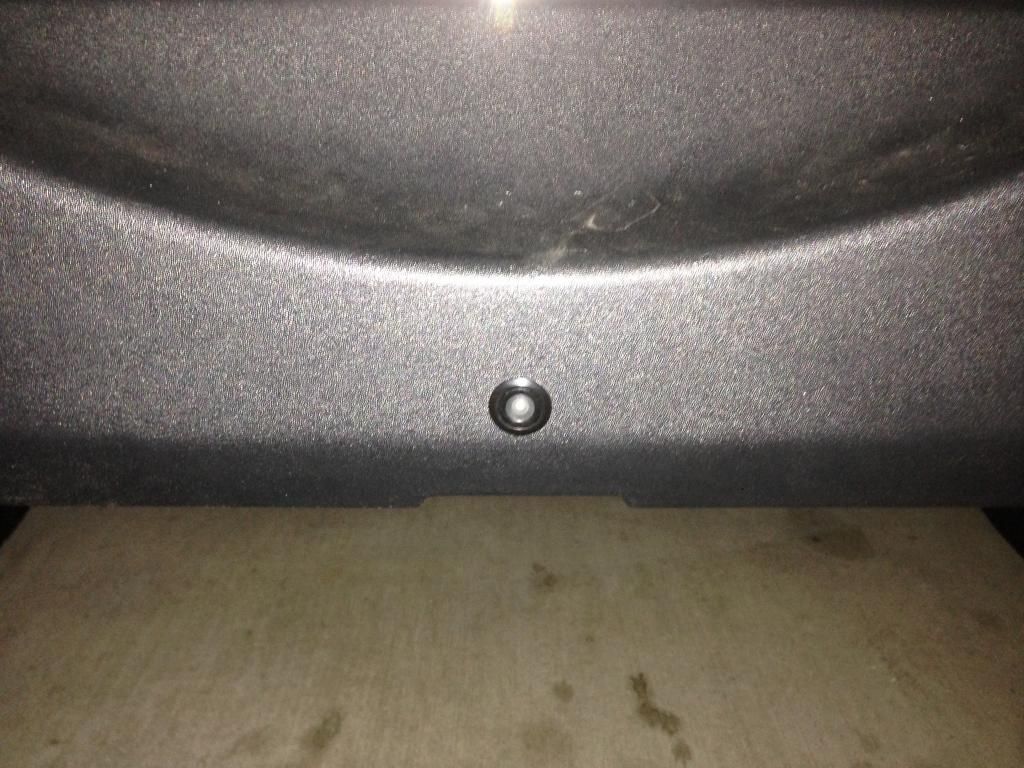

i decided to go with a flush mount in the middle of the rear bumper right above where my future receiver is.

1. pull the bumper. this probably isnt necessary, but i think it made life easier, plus the way i wanted to run the wires made it necessary for me (cord fits between top of frame rail and bottom of the upper lip of the bumper, but there isn't enough room to sneak the plugs through there.) there are six 5/8 (i think) bolts holding the bumper on from the backside. all easily accessible.

2. drill baby drill. the kit from XT comes with a hole saw drill bit that's the size of the camera. how convenient. the part of the bumper i drilled into is actually a slight bit skinnier than the camera is long (even with the hollow part on the inside), plus you have to pull the wires out the back, so you'll drill through both sides of the bumper.

3. feed the camera wires out the back of the bumper and install the camera, making sure the arrow is at the top so your picture is rightside up. the front of the hole is pretty watertight with the camera in there, but the back isn't. a quick shot of expandable foam and that's fixed.

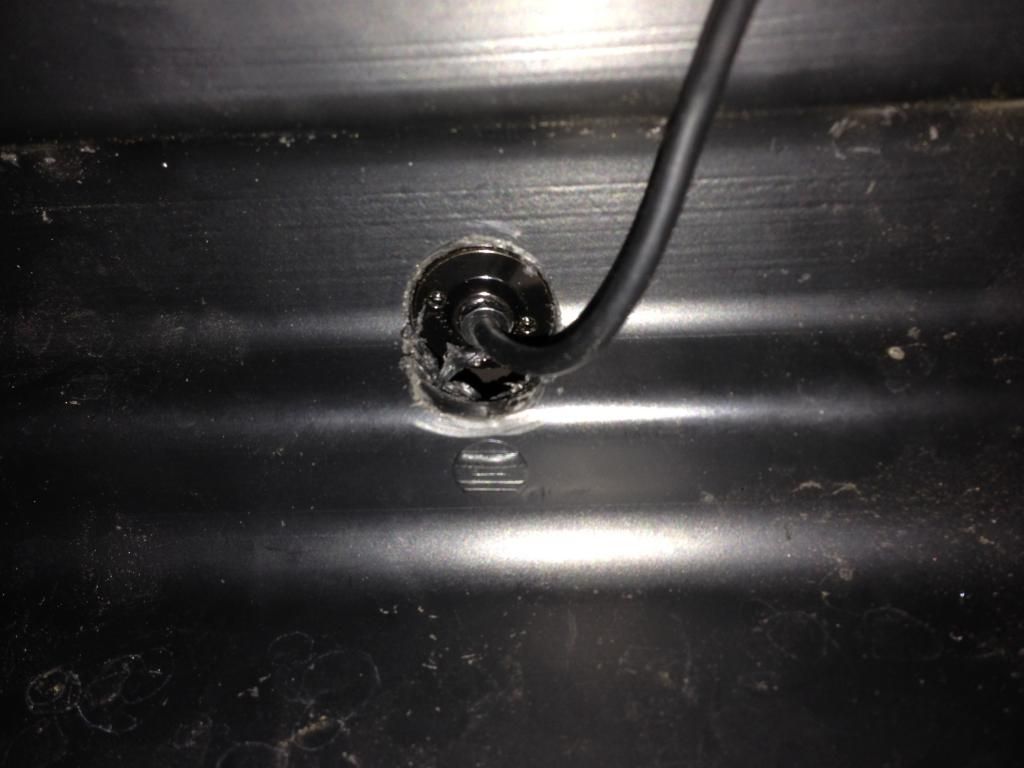

from the back (bumper is upside down too)

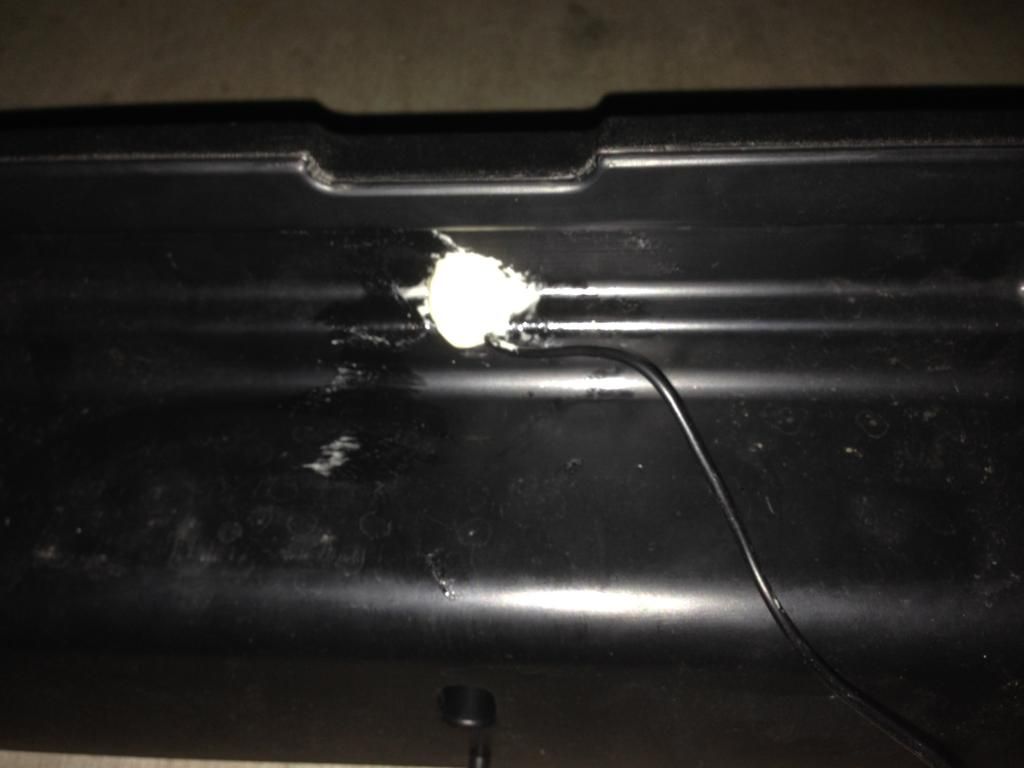

not the prettiest, but no one will see it.


4. put the bumper back. again, i fed the wires from the back of the bumper and up over the frame rail, so you'll need to route the wires before you bolt on the bumper. after they go over the framerail, i just ran them along the back side of the top of the bumper and fed them under the right bottom corner of the weather stripping for the tailgate. then i connected them to the wires i originally ran to the back when i installed the head unit. tuck everything under the nearest carpet seam and you're done. edit: if you're more prone to get rained on, you probably should put half a second of thought into where to run the wires so the connections are high and dry.

edit #2: there are 4 wires coming from the camera in addition to the power and video cord, 2 green and 2 white. the only instructions in the kit actually came with the camera and they explain these. 2 are for an application using the mirror as your screen, so not needed. the other 2, if i deciphered the instructions correctly, relate to the parking lines you see on the screen below. apparently, if you don't want them on the screen, you connect these two wires. i want the guidelines there and because i plugged my camera in and tested it i already knew they were working, so i just capped these 4 wires and wire taped them together to keep things neat.




Life's hard. It's harder if you're stupid.

Last edited by pizzaman; 11-21-2014 at 06:16 PM.
pizzaman is offline
post #5 of 18 Old 11-23-2014, 06:25 AM
Wheeler

Join Date: Oct 2014
Age: 38
Posts: 31
Feedback: 0 reviews

Excellent write up. Im sure you saw my post the other day asking questions (Raxiom or Rosen) so this write up was perfect timing with my Black Friday purchase nearing.

Sub'd
305Jeep is offline
post #6 of 18 Old 11-23-2014, 07:56 PM
Granite Guru

Join Date: May 2014
Location: north central Ohio
Posts: 190
Feedback: 0 reviews

Wish this unit worked with the alpine system.
family4x4 is offline
post #7 of 18 Old 11-24-2014, 09:35 AM
Wheeler

Join Date: Oct 2014
Age: 38
Posts: 31
Feedback: 0 reviews

Quote:
Originally Posted by family4x4 View Post
Wish this unit worked with the alpine system.
Hit up Ryan at Extreme Terrain. Im pretty sure they have the Alpine issues worked out. Plus hes doing a sick sale on this unit for me on Black Friday. Hit him up.
305Jeep is offline
post #8 of 18 Old 11-24-2014, 09:42 AM
JKO Addict!

TCdawg's Avatar

Join Date: Jan 2011
Location: Woodstock, Ga
Age: 49
Posts: 3,717
Garage
Feedback: 2 reviews

Quote:
Originally Posted by family4x4 View Post
Wish this unit worked with the alpine system.
what would this unit offer over the stock Nav/alpine unit?

TC
Crawling For Reid March 23, 2019 Adventure OffRoad Park


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
TCdawg is offline
post #9 of 18 Old 11-24-2014, 10:29 AM Thread Starter
Rock God

pizzaman's Avatar

Join Date: Aug 2009
Posts: 1,593
Garage
Feedback: 0 reviews

Quote:
Originally Posted by TCdawg View Post
what would this unit offer over the stock Nav/alpine unit?
hey may have the alpine system, but not nav.
pizzaman is offline
post #10 of 18 Old 11-24-2014, 06:20 PM
Granite Guru

Join Date: May 2014
Location: north central Ohio
Posts: 190
Feedback: 0 reviews

Quote:
Originally Posted by pizzaman View Post
hey may have the alpine system, but not nav.
Yup, alpine unit, no nav.
family4x4 is offline
post #11 of 18 Old 11-26-2014, 07:16 AM
Wheeler

Join Date: Jan 2010
Age: 62
Posts: 42
Feedback: 0 reviews

Works great with my Alpine system! I have the Infinity package, and this unit was plug and play, period. I don't miss the sat because I consider it a waste of money at best.
wrangled is offline
post #12 of 18 Old 06-09-2015, 10:22 AM
Newbie

Join Date: Jun 2015
Location: Katy, Texas USA
Posts: 4
Feedback: 0 reviews
Raxiom Radio

So, everyone who's used the radio for several months now, what's the verdict on the sound quality, nav system and product in general???

Considering a purchase to replace factory on my 2015JKU, looking at various options......
dsharp215 is offline
post #13 of 18 Old 08-19-2015, 05:39 AM
Wheeler

ekms377's Avatar

Join Date: May 2011
Location: DFW,TX
Age: 49
Posts: 49
Feedback: 0 reviews

Me too........anyone?

Eric
Rhome,TX

'15 Anvil JKUS
TF 2.5"
Toyo OC 35"
Fuel Revolver 17"
4.56 gearing
ekms377 is offline
post #14 of 18 Old 08-20-2015, 05:05 AM
Wheeler

Join Date: Jan 2010
Age: 62
Posts: 42
Feedback: 0 reviews

Well I'm still very happy with my purchase. It has remained consistent at 40 below, and 40 above, and everything in between. I am no audiophile, but the sound quality is certainly better than the stock unit was.
wrangled is offline
post #15 of 18 Old 09-21-2015, 01:49 PM
Newbie

Join Date: Sep 2015
Age: 49
Posts: 1
Feedback: 0 reviews
I just installed this unit this weekend and..

and it seems like my FM signal quality is markedly worse than the stock radi was, and the volume fades with the signal. anyone have this? and does anyone know if there's a site with updated firmware? my radio initial boot time seems particularly slow.
FatherStorm is offline
post #16 of 18 Old 12-05-2015, 08:11 PM
Newbie

Join Date: Dec 2015
Posts: 1
Feedback: 0 reviews
Steering wheel and back up camera

I bought my 15 jeep slightly used. Previous owner had put system in with crappy head unit. I ordered the raxiom unit to replace it. Original harness still there, but once I got everything in, steering wheel buttons don't work and camera does not come on in reverse despite having it turned on in menu. Any thoughts?
Big Jim is offline
post #17 of 18 Old 04-06-2016, 06:45 PM
Wheeler

Join Date: Mar 2016
Age: 50
Posts: 21
Feedback: 0 reviews

Ryan,

Im interested.
freerider969 is offline
post #18 of 18 Old 04-06-2016, 06:49 PM
Wheeler

Join Date: Mar 2016
Age: 50
Posts: 21
Feedback: 0 reviews

Big Jim

Did you ever figure out the issue with the radio controls and reverse camera?
