Steering Stabilizer Relocation

My stock SS is leaking and I need to replace it. However, I have the JKS reinforcement bracket and would like to relocate the SS mount to reduce the mounting angle on the axle side. What should I do, if anything? Or should I just use a new SS with some sort of ball joint on the axle side? I've considered using a spacer and attaching the SS on the outside of the JKS reinforcement bracket. It would place the SS above the tie rod, but not sure if a longer bolt would withstand the stress.

Here are some pictures of what it looks like. These are pre-damage pictures.







Need advice. Thanks.

2018 JL Rubicon Unlimited, 6-speed, White
1985 CJ-7, 4-speed, 258 I-6, 3" Springs, 33" BFG AT, Gunmental Gray
taxman is offline
Sponsored Links
Advertisement

post #2 of 16 Old 02-20-2012, 08:56 AM
Gunnery Sergeant USMC (ret)

Uncle Sams Misguided Child's Avatar

Join Date: Dec 2010
Location: Tucson AZ
Age: 52
Posts: 22,000
Feedback: 8 reviews

I think a longer bolt could take the stress.

Quote:
Originally Posted by lohchief View Post
If people don't take a stand now,you'll be bitches under their thumbs tomorrow.
Quote:
Originally Posted by StubEXrube View Post
I think too much of a pressure variant between Earth and outer-space... lack of oxygen... something like that.
Uncle Sams Misguided Child is offline
post #3 of 16 Old 02-20-2012, 08:58 AM
JKO Addict!

Join Date: Nov 2009
Location: Conroe, Texas
Posts: 3,222
Garage
Feedback: 0 reviews

I bought the Woods relocation bracket and went with a Monroe SS. I painted it and put one of their stickers on it. Mine seems more horizontal than the pics on your Jeep. Monroe #SC-2960 O'Reilly's I did trim the edge a little with my grinder on the stabilizer. The washer cap (axle end) was just a little too big but only took a few seconds to fix. You can see that I cut a little off in the pics. Great price and works as it should.




Last edited by 4x4x4; 02-20-2012 at 09:05 AM.
4x4x4 is offline
Sponsored Links
Advertisement

post #4 of 16 Old 02-20-2012, 09:01 AM
JKO Addict!

Goodysgotacuda's Avatar

Join Date: May 2009
Location: Denton, TX
Posts: 13,230
Feedback: 1 reviews

Longer bolt will be fine. I have just welded a bolt to the face of a track bar bracket and it's worked out fine.

SOLD - '09 2dr Rubicon - 1.0Gal | 6spd | 37s | 4.88s |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
| OR-Fab cage | Poly Cage | BFH Front | XRC Rear | XRC12 Winch | Walker Evans Beadlocks |

Retired from the Jeep community, for now.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Goodysgotacuda is offline
post #5 of 16 Old 02-20-2012, 09:16 AM Thread Starter
Rock God

taxman's Avatar

Join Date: Jun 2010
Location: Raleigh, NC
Age: 46
Posts: 1,134
Garage
Feedback: 0 reviews

My fear with a longer bolt is that the SS may hit the tie rod or the drag link on a full turn. I guess I'll know once I do it and all I've lost is the cost of a longer bolt. I considered welding a 1/4"- or 3/16"-thick steel tab just above the trackbar bolt and mounting the SS to that tab. It would raise it out of the way and bring it out some.

What do you think?

2018 JL Rubicon Unlimited, 6-speed, White
1985 CJ-7, 4-speed, 258 I-6, 3" Springs, 33" BFG AT, Gunmental Gray
taxman is offline
post #6 of 16 Old 02-20-2012, 09:19 AM
JKO Addict!

Goodysgotacuda's Avatar

Join Date: May 2009
Location: Denton, TX
Posts: 13,230
Feedback: 1 reviews

If you have a welder, I'd just stick a bolt to the face of the track bar bracket. Up and over from the track bar bolt and call it good.

SOLD - '09 2dr Rubicon - 1.0Gal | 6spd | 37s | 4.88s |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
| OR-Fab cage | Poly Cage | BFH Front | XRC Rear | XRC12 Winch | Walker Evans Beadlocks |

Retired from the Jeep community, for now.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Goodysgotacuda is offline
post #7 of 16 Old 03-04-2012, 01:52 PM Thread Starter
Rock God

taxman's Avatar

Join Date: Jun 2010
Location: Raleigh, NC
Age: 46
Posts: 1,134
Garage
Feedback: 0 reviews

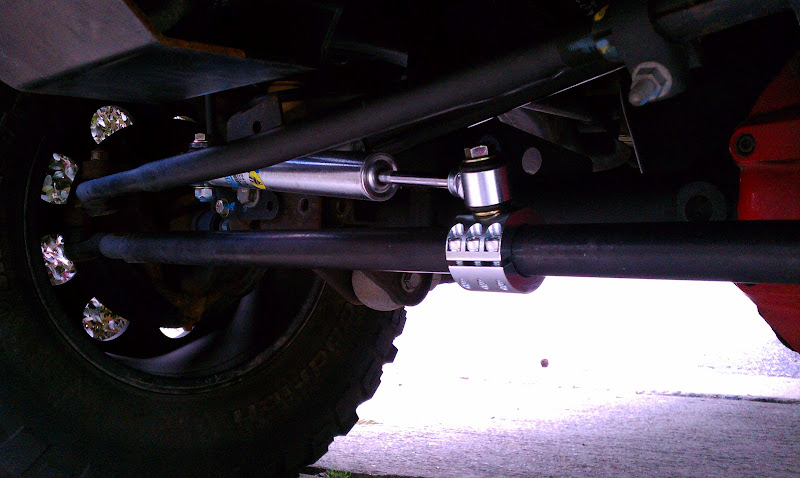

Well, I ordered everything from Marcus at RCO, received a few days later and just finished installing it today. I have to admit, the difference is very noticeable from stock. I was not expecting that. Not that the stock ride was unstable or anything, but this new shock absorber really stiffens the steering and makes any bump steer completely gone.

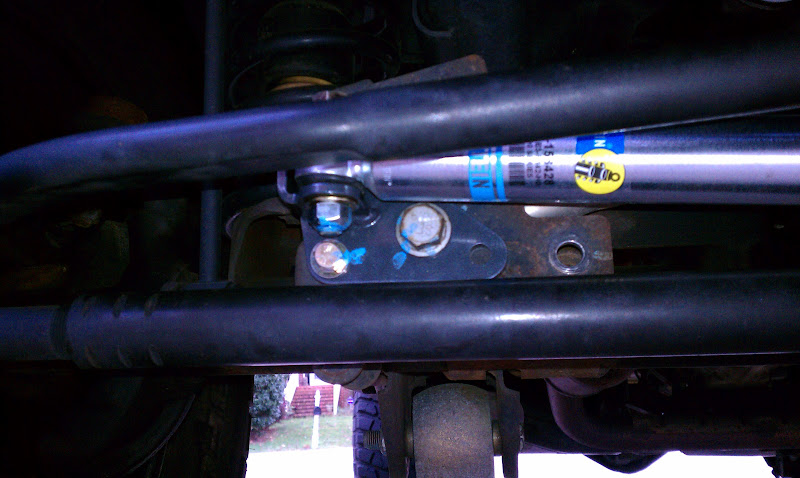

The relocation bracket has three holes, but one of the holes was covered by the JKS trackbar bracket. I was too lazy to drill through 1/4" of steel, and the bracket seemed more than secure with just the two bolts, so I left it as is. Solid.
