newb autocad tire mount - JKowners.com : Jeep Wrangler JK Forum

LinkBack Thread Tools Display Modes
post #1 of 7 Old 08-29-2010, 11:36 AM Thread Starter
Granite Guru

Join Date: Dec 2009
Location: ft benning, ga
Age: 34
Posts: 383
Feedback: 0 reviews
Send a message via AIM to oneleggedsheep

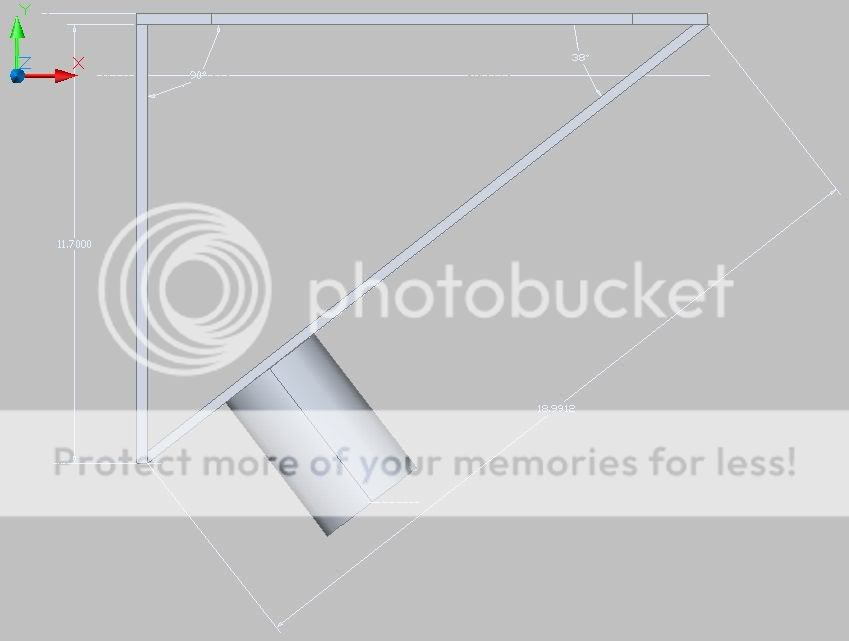

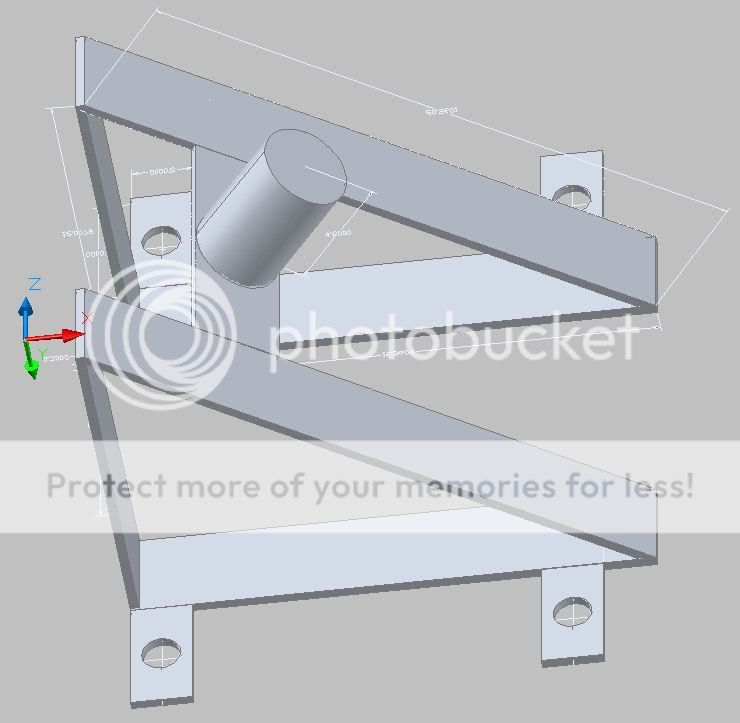

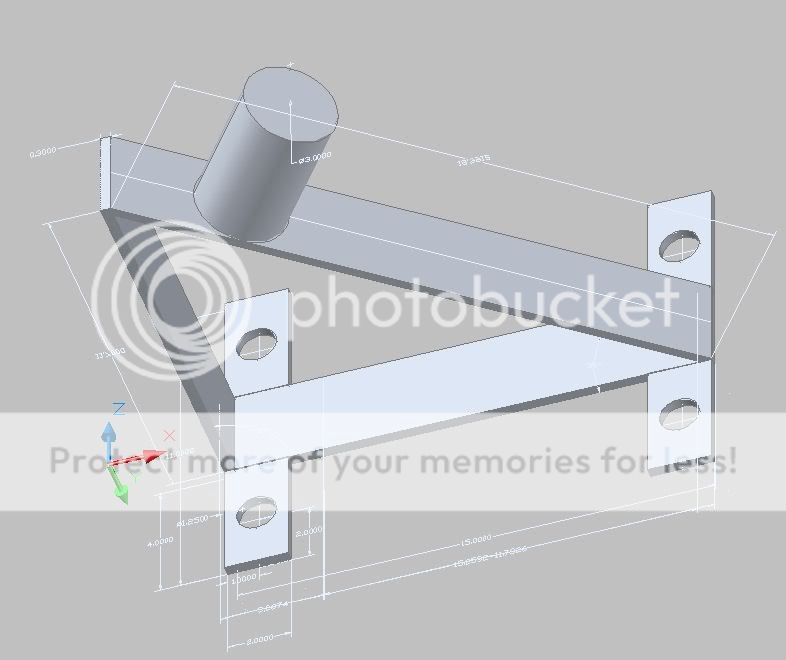

newb autocad tire mount

Planning to bolt this in the tub of my jeep where the rear seat is... no purpose cept for aesthetic but I think it might be a little weak to handle a ~65lb tire while wheeling... what yall think?

Disclaimer: Not an engineering major, 2nd day messing around with autocad.

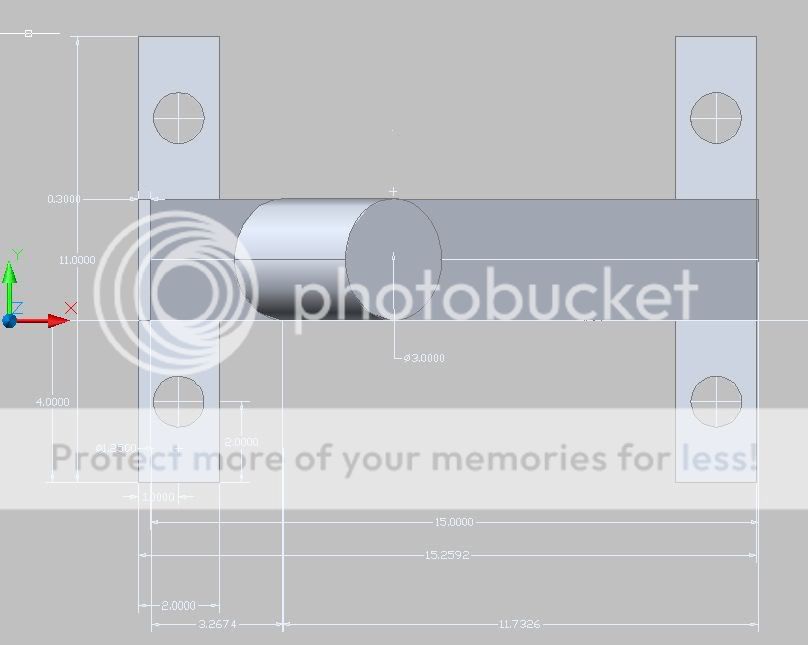

Edit: Couldn't figure out how to get the dimension of the cylinder ontop but it's 4.5 so the wheel sits across the board





In the tub of this:


Last edited by oneleggedsheep; 08-29-2010 at 11:41 AM.
oneleggedsheep is offline
Sponsored Links
Advertisement

post #2 of 7 Old 08-29-2010, 12:49 PM
PIG
JKO Addict!

PIG's Avatar

Join Date: Aug 2007
Location: SLO, CA
Posts: 2,718
Feedback: 2 reviews

What size tire...?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

USE CODE: JKO10 FOR 10% SAVINGS ON YOUR NEXT ORDER!!!

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
//
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
//
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
//
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
//
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

PIG is offline
post #3 of 7 Old 08-29-2010, 12:51 PM Thread Starter
Granite Guru

Join Date: Dec 2009
Location: ft benning, ga
Age: 34
Posts: 383
Feedback: 0 reviews
Send a message via AIM to oneleggedsheep

Lol damn, that's one I didn't think of... 33x12. Time to redo.
oneleggedsheep is offline
Sponsored Links
Advertisement

post #4 of 7 Old 09-12-2010, 12:00 PM Thread Starter
Granite Guru

Join Date: Dec 2009
Location: ft benning, ga
Age: 34
Posts: 383
Feedback: 0 reviews
Send a message via AIM to oneleggedsheep

Done, tire should fit and have enough support on the left and right sides... I miss anything?

oneleggedsheep is offline
post #5 of 7 Old 09-12-2010, 12:15 PM
JKO Addict!

tkob1060's Avatar

Join Date: Jun 2009
Location: NJ :)
Age: 51
Posts: 7,281
Garage
Feedback: 0 reviews

now the question is, what is under the tub where you have the holes to mount it? anything in the way to drill through and support it?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by Dancin Dan View Post
A Jeep just zipped past my house and I could swear I heard the driver yellin:

"The tkob is coming!! The tkob is coming!!"
tkob1060 is offline
post #6 of 7 Old 09-12-2010, 12:25 PM Thread Starter
Granite Guru

Join Date: Dec 2009
Location: ft benning, ga
Age: 34
Posts: 383
Feedback: 0 reviews
Send a message via AIM to oneleggedsheep

Nada, only thing on the topside are the ridges that won't make it stable but I figure I could sand that down. I was afraid I'd have no room to work underneath but last I saw the area was clear from anything too
oneleggedsheep is offline
post #7 of 7 Old 09-12-2010, 12:32 PM
JKO Addict!

tkob1060's Avatar

Join Date: Jun 2009
Location: NJ :)
Age: 51
Posts: 7,281
Garage
Feedback: 0 reviews

Quote:
Originally Posted by oneleggedsheep View Post
Nada, only thing on the topside are the ridges that won't make it stable but I figure I could sand that down. I was afraid I'd have no room to work underneath but last I saw the area was clear from anything too
Cool, now get it made

you talking about the sound deadener? If so you can easily chip that off with a wood chisel and hammer. I think it will be fine on though, if one half of the mount is on it and the other off just put some washers under the one that isnt.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by Dancin Dan View Post
A Jeep just zipped past my house and I could swear I heard the driver yellin:

"The tkob is coming!! The tkob is coming!!"
tkob1060 is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the JKowners.com : Jeep Wrangler JK Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
