Talking New! JK/U skid plate system.

TL/DR
We have been working on this system for the 2 or 4 door JK for along time,it is now available.
There is a huge thread on here about it too.

Works with short arm systems using stock mounting.

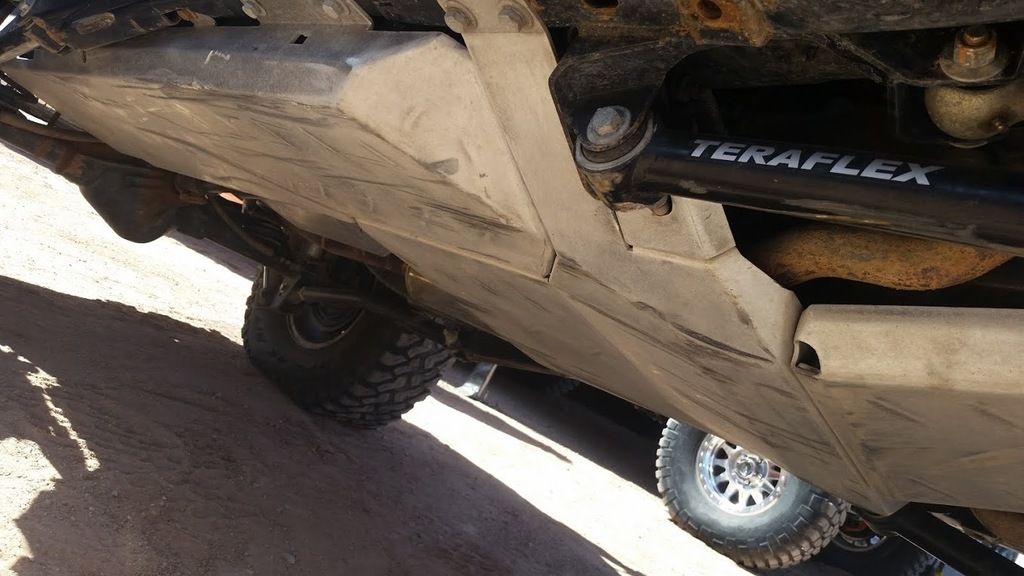

Works with the Teraflex Long Arm system.
Available at various retailers.



Many years of research and development have gone into the design of the Ultimate JK Skid Plate System. The beginning phases of development were based on pure trail abuse of the factory skid plates. Through this we identified the areas that would need additional reinforcement and that building a simple overlay would not suffice for serious trail abuse. While developing the system we set a few goals, we wanted to be the first manufacturer to design a completely smooth (boltless) bottom system, develop our own unique gas tank mount/skid, and of course use aluminum to minimize the overall weight of the system.

Since we were venturing again into uncharted territory it was imperative to thoroughly test the system before releasing it to the public. We completed the design and began testing in June of 2014 and have tested it across the country and even taken it on Ultimate Adventure to ensure that we had the highest quality system to date. We made a few minor changes over the 10 months of testing making the final product truly top of the line.

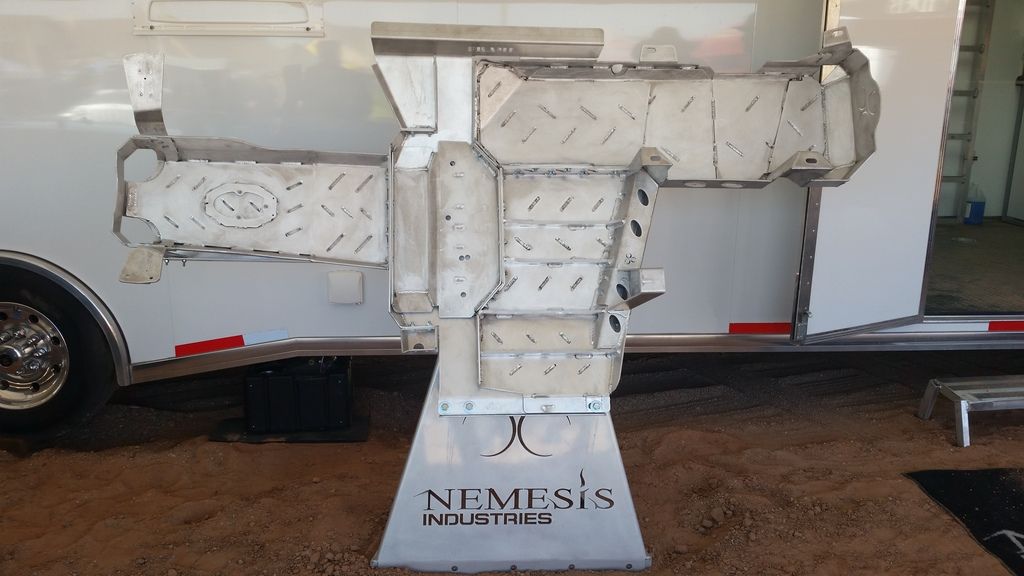

The system is comprised of 4 main pieces, the gas tank skid/mount, transfer case/cross member skid, the oil and transmission skid, and the key to the boltless design the intermediate plate. By using the intermediate plate and bolting it to the transmission cross member we are able to connect all of the other pieces not from the bottom like everyone else but from the sides, front, and back making a series of I-beams to increase the strength of each component once bolted together. After our initial testing of the factory skids we knew the areas that were impacted the hardest so in those areas we use 3 layers of 3/16” aluminum giving us a combined thickness of 9/16” the thickest on the market for the most protection. Due to the size and span of the transfer case/cross member plate we use 2 layers of 3/16” aluminum and 3/8” ribs spanning the length of the plate. In addition to the ribs we also designed a bolt on rear support that sits just below one of the frame cross members so that on extreme hits we can absorb and then transfer the remaining energy back to the frame. The transfer case skid was designed to work with the factory transfer cases along with Atlas 2 and 4 speed configurations. The last piece of the system is the oil and transmission skid. Again we used 2 layers of 3/16” aluminum across the entire plate and we designed in a unique oil drain access plate that completely covers the bolts to protect them from damage but still maintains easy access for routine maintenance.

Weight has become one of the most important factors in designing aftermarket products. Even with all of the reinforcement the weight of the entire system is under 150 pounds for a 4 door JK, that is only 75 pounds more than the factory skid plates and you have immeasurably increased the underbody protection.

Notes

- Installation requires a transmission cross member that has not been dented or damaged.

- If your transmission cross member is damaged we recommend using the Poison Spyder cross member.

- Installation does require the removal of the gas tank so depending on the year of the vehicle a fuel line disconnect tool may be required




NEMESIS INDUSTRIES
INDUSTRY'S FIRST ALL ALUMINUM PRODUCT LINE
(303) 974-2460

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Follow us on
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Nemesis Industries is offline
Sponsored Links
Advertisement

post #2 of 8 Old 05-22-2015, 09:33 PM
Granite Guru

Recharge's Avatar

Join Date: Jun 2013
Location: Winnipeg, MB
Age: 39
Posts: 108
Garage
Feedback: 0 reviews

Been a long time coming, but looks great! Looking at the way it mounts, do you know if it works with the AFE y-pipe? It moves the cross over behind the cross member so that the cross over doesn't interfere with the front drive shaft.
Recharge is offline
post #3 of 8 Old 05-26-2015, 09:26 AM Thread Starter
JKowners Vendor

Nemesis Industries's Avatar

Join Date: Apr 2010
Posts: 558
Garage
Feedback: 0 reviews
Talking

Thanks!! The skid works with the factory exhaust and exhaust spacers, and of course a new drive shaft is always another option.


Quote:
Originally Posted by Recharge View Post
Been a long time coming, but looks great! Looking at the way it mounts, do you know if it works with the AFE y-pipe? It moves the cross over behind the cross member so that the cross over doesn't interfere with the front drive shaft.

NEMESIS INDUSTRIES
INDUSTRY'S FIRST ALL ALUMINUM PRODUCT LINE
(303) 974-2460

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Follow us on
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Nemesis Industries is offline
Sponsored Links
Advertisement

post #4 of 8 Old 05-27-2015, 12:16 PM
Rock God

Berserker's Avatar

Join Date: Mar 2011
Location: Paris of the Plains
Posts: 1,462
Feedback: 2 reviews

Awesome! I ran your rocker guards on my JK and, though I beat the crap out of them, they protected my body. That proves to me that you guys know how to make a quality aluminum product for our rigs. Any word on pricing or when they'll be listed on your site? I need skids for my '13 and these are now my top contender.

Damn the cannons, full speed ahead! |
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Berserker is offline
post #5 of 8 Old 05-28-2015, 07:54 AM
Rock God

StepsRide's Avatar

Join Date: Sep 2009
Location: Palm Harbor, FL
Posts: 610
Garage
Feedback: 0 reviews

Can you purchase these in stages. In other words oil pan skid then buy the Trans skid....

I saw the skids at jeep beach and they looked great.

Thanks

Obama's EPA just shut down your favorite ORV trail.
StepsRide is offline
post #6 of 8 Old 05-28-2015, 08:44 AM Thread Starter
JKowners Vendor

Nemesis Industries's Avatar

Join Date: Apr 2010
Posts: 558
Garage
Feedback: 0 reviews

The MSRP will be 3499. but remember where they are for sell, often times offer a X% amount off.
In regards to getting on the site, hopefully soon.


Quote:
Originally Posted by Berserker View Post
Awesome! I ran your rocker guards on my JK and, though I beat the crap out of them, they protected my body. That proves to me that you guys know how to make a quality aluminum product for our rigs. Any word on pricing or when they'll be listed on your site? I need skids for my '13 and these are now my top contender.
Unfortunately this is the one item that we build that has to be purchased
all at once. The issue is that if all the pieces are not installed at the
same time then the system as a whole is not as strong so there is a
potential that an individual piece could become deformed not allowing the
customer to be able to install the next piece, also before shipping each
kit is full assembled to ensure alignment.

Quote:
Originally Posted by StepsRide View Post
Can you purchase these in stages. In other words oil pan skid then buy the Trans skid....

I saw the skids at jeep beach and they looked great.

Thanks

NEMESIS INDUSTRIES
INDUSTRY'S FIRST ALL ALUMINUM PRODUCT LINE
(303) 974-2460

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Follow us on
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Nemesis Industries is offline
post #7 of 8 Old 05-29-2015, 11:23 AM
Granite Guru

Join Date: Feb 2012
Location: Everett, Wa
Age: 34
Posts: 256
Feedback: 0 reviews

$3500!!!! wow, 3X the price of artec

2012 JKU, stock for now, but gathering parts
Wojin is offline
post #8 of 8 Old 05-29-2015, 11:33 AM Thread Starter
JKowners Vendor

Nemesis Industries's Avatar

Join Date: Apr 2010
Posts: 558
Garage
Feedback: 0 reviews
Talking

Not quite that but it is higher.
Why?
Ours is thicker so more protection, so that comes at a higher cost.
The additional ribbing too.
We have 90 pieces to insure a precise fit.




Quote:
Originally Posted by Wojin View Post
$3500!!!! wow, 3X the price of artec
