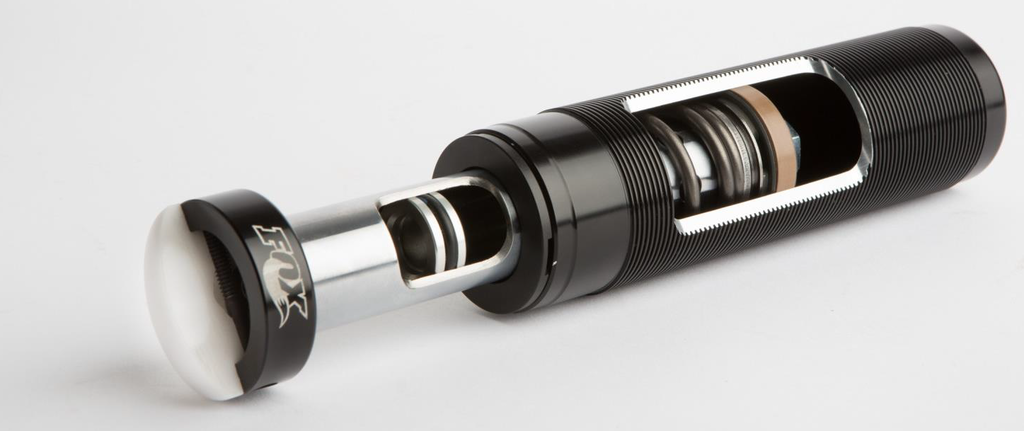

FOX's new IFP/Negative spring bumpstops coming soon!!!!!!!

Packaging advantages:
  • Easily mounts to JK front bump tube.
  • Threads allow easy adjustment of height
  • Fill port allows pressure adjustment from strike pad side


Performance advantages:
  • IFP inside shaft. Connected to rebound side of main piston, so cavitation is
    impossible.
  • Negative spring- reduces the impact felt at initial contact.
  • These two factors work together to make a vast improvement in bumpstop
    performance in multi-use vehicles (such as Jeeps and trucks)
  • In a slow hit- A traditional bumpstop is felt and makes a noise at
    engagement because it has to overcome the force from the charge
    pressure, typically around 200 lbs. The negative spring in the new
    bumpstop counters that force, making the force required around 10 lbs.
    This means that the bumpstops are not felt during rock crawling and onroad
    situations. However as they are collapsed, the force ramps up to
    levels higher than traditional bumpstops to prevent bottom-out.
  • During a high speed hit, a traditional bumpstop takes approximately half
    its travel to ramp up to full damping force. This is because it is an
    emulsion shock- the oil is mixed with nitrogen. The new style shock uses
    an IFP (Internal Floating Piston) design, therefore creates full damping
    force from initial contact all the way through its travel. This extra force
    helps to slow the suspension travel sooner and smoother.
  • In combination, these two features make the new bumpstop design
    superior in slow hits and on-road manners, while still having more overall
    stopping power for the big hits.

Available in: 2.0" travel, 2.5" travel, JK front kits, and JK rear kits.

Up on the Off Road Warehouse's website for pre-order!!!!!:

http://offroadwarehouse.com/i-212427...-stop-kit.html
http://offroadwarehouse.com/i-212398...-stop-kit.html




To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1-800-341-7757 Ext. 123
Ask for Justin
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
ORWJK is offline
Sponsored Links
Advertisement

post #2 of 19 Old 04-07-2015, 11:19 AM
JKO Addict!

TCdawg's Avatar

Join Date: Jan 2011
Location: Woodstock, Ga
Age: 50
Posts: 3,720
Garage
Feedback: 2 reviews

Any pics of the units installed?

TC
Crawling For Reid March 23, 2019 Adventure OffRoad Park


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
TCdawg is offline
post #3 of 19 Old 04-07-2015, 11:21 AM Thread Starter
JKowners Vendor

ORWJK's Avatar

Join Date: Jul 2010
Location: San Diego
Posts: 798
Garage
Feedback: 2 reviews
Fox IFP bumps

Quote:
Originally Posted by TCdawg View Post
Any pics of the units installed?
Units are not available yet, however as soon as they provide installed pictures or I get a set installed here at ORW I will make sure I have pics up for you folks to enjoy. Thank you for the interest.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1-800-341-7757 Ext. 123
Ask for Justin
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
ORWJK is offline
Sponsored Links
Advertisement

post #4 of 19 Old 04-07-2015, 04:30 PM
Granite Guru

Recharge's Avatar

Join Date: Jun 2013
Location: Winnipeg, MB
Age: 39
Posts: 108
Garage
Feedback: 0 reviews

These are awesome. Definitely interested.
Recharge is offline
post #5 of 19 Old 04-07-2015, 05:20 PM
Granite Guru

Join Date: Nov 2013
Location: Norcal
Posts: 287
Feedback: 0 reviews

price quote for front and rear to 95128 please
aus-jeep is offline
post #6 of 19 Old 04-08-2015, 07:13 PM
Granite Guru

Join Date: Apr 2012
Location: Youngstown,Ohio
Age: 41
Posts: 498
Feedback: 0 reviews

Quote:
Originally Posted by Recharge View Post
These are awesome. Definitely interested.
X2! Keep us updated please!

08 JKU 6.0 LC8 6L80 Atlas 2 39" KM3's on Trilogy race beadlocks, prorock 44,rcv's arb front. rock jock 60 rear 40spline shafts,arb 5.13's and a bunch of other stuff
89yjon is offline
post #7 of 19 Old 05-06-2015, 09:11 AM
Granite Guru

sprockwell's Avatar

Join Date: Apr 2013
Location: So. CA
Posts: 253
Feedback: 1 reviews
sprockwell is offline
post #8 of 19 Old 05-06-2015, 09:40 AM
Granite Guru

RockingKC's Avatar

Join Date: Aug 2013
Location: Overland Park, Ks.
Posts: 197
Garage
Feedback: 0 reviews

699 per kit...

Kyle
2013 JK Sport S Wrangler
1999 Mustang GT
1997 Ford F-250 4X4
RockingKC is offline
post #9 of 19 Old 05-11-2015, 01:01 PM
Super Moderator

j3ff3ry_j33p's Avatar

Join Date: Jul 2012
Location: Nashville
Posts: 5,993
Garage
Feedback: 1 reviews

great though they may be, I don't see being able to pay 700 smackers for a set of the awesomeness for a year or so...

on this subject, can Daystar stingers be used in the OEM cups as an upgrade option until these can be afforded? Don't mean to hi-jack thread but thought I would ask


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
j3ff3ry_j33p is offline
post #10 of 19 Old 05-11-2015, 11:16 PM
Granite Guru

Join Date: Jul 2011
Location: Sioux City, IA
Age: 35
Posts: 388
Feedback: 10 reviews

subscribed.
Stangbuster is offline
post #11 of 19 Old 07-09-2015, 10:05 PM
Granite Guru

Join Date: Jul 2011
Location: Sioux City, IA
Age: 35
Posts: 388
Feedback: 10 reviews

Anybody get these yet? Reviews?
Stangbuster is offline
post #12 of 19 Old 07-13-2015, 01:29 PM Thread Starter
JKowners Vendor

ORWJK's Avatar

Join Date: Jul 2010
Location: San Diego
Posts: 798
Garage
Feedback: 2 reviews

Hey bud, Fox hasn't shipped any yet due to complications in manufacturing of them. I was told it would be about 3-4 weeks. We will see *fingers crossed*


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1-800-341-7757 Ext. 123
Ask for Justin
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
ORWJK is offline
post #13 of 19 Old 03-17-2017, 07:57 AM
Granite Guru

Join Date: Apr 2012
Location: Youngstown,Ohio
Age: 41
Posts: 498
Feedback: 0 reviews

I know this is an old thread, but any new info on these? I see they are available now, just wondering if anyone is running them?

08 JKU 6.0 LC8 6L80 Atlas 2 39" KM3's on Trilogy race beadlocks, prorock 44,rcv's arb front. rock jock 60 rear 40spline shafts,arb 5.13's and a bunch of other stuff

Last edited by 89yjon; 03-17-2017 at 08:15 AM.
89yjon is offline
post #14 of 19 Old 03-17-2017, 11:56 AM
Wheeler

Join Date: Jun 2016
Posts: 39
Feedback: 0 reviews

Quote:
Originally Posted by 89yjon View Post
I know this is an old thread, but any new info on these? I see they are available now, just wondering if anyone is running them?


I'm running them, no complaints at all. They're quiet and progressive.
SmashHole is offline
post #15 of 19 Old 03-17-2017, 01:30 PM
Granite Guru

Join Date: Apr 2012
Location: Youngstown,Ohio
Age: 41
Posts: 498
Feedback: 0 reviews

Quote:
Originally Posted by SmashHole View Post
I'm running them, no complaints at all. They're quiet and progressive.
Thanks for the reply! Sent you a pm also

08 JKU 6.0 LC8 6L80 Atlas 2 39" KM3's on Trilogy race beadlocks, prorock 44,rcv's arb front. rock jock 60 rear 40spline shafts,arb 5.13's and a bunch of other stuff
89yjon is offline
post #16 of 19 Old 03-17-2017, 01:51 PM
Granite Guru

Join Date: Nov 2013
Location: Norcal
Posts: 287
Feedback: 0 reviews

I got mine installed a while ago and ran them at King of the Hammers this year.
Makes a massive difference going fast in the bumps
I'll have them out crawling once the snow melts a bit and I can get to the Rubicon, Fordyce, Dusy, etc.







aus-jeep is offline
post #17 of 19 Old 03-19-2017, 07:45 PM
Granite Guru

Join Date: Apr 2012
Location: Youngstown,Ohio
Age: 41
Posts: 498
Feedback: 0 reviews

Thanks for the pics! The only thing I'm not sure I like about these is where the valve is located to change\fill the nitrogen. Looks like it would be a pain in the butt to adjust it on the front end...
Aus-Jeep, what psi are yours set to on the front of your Jk?

08 JKU 6.0 LC8 6L80 Atlas 2 39" KM3's on Trilogy race beadlocks, prorock 44,rcv's arb front. rock jock 60 rear 40spline shafts,arb 5.13's and a bunch of other stuff
89yjon is offline
post #18 of 19 Old 03-20-2017, 02:53 AM
Wheeler

Join Date: Jun 2016
Posts: 39
Feedback: 0 reviews
FOX's new IFP/Negative spring bumpstops coming soon!!!!!!!

Quote:
Originally Posted by 89yjon View Post
Thanks for the pics! The only thing I'm not sure I like about these is where the valve is located to change\fill the nitrogen. Looks like it would be a pain in the butt to adjust it on the front end...
Aus-Jeep, what psi are yours set to on the front of your Jk?


They're not really made to adjust frequently, the internal spring takes so much of the harshness out so it's not that much of a big deal. Fox sells them pre-charged to 160 psi.
SmashHole is offline
post #19 of 19 Old 03-22-2017, 10:06 AM
Granite Guru

Join Date: Apr 2012
Location: Youngstown,Ohio
Age: 41
Posts: 498
Feedback: 0 reviews

Just picked up a set for the front! Can't wait to get them installed and see how they work out!
