DIY rear bumpers. lets see em!

does anyone have a DIY rear bumper tire carrier they would like to show? parts list? i've been toying around with the thought of it. i'll draw something up real quick to show you about what i'm looking at. pics and links would be nice.

2009 2dr, surf blue
lift, 35's, and other stuff.

"Tigers love pepper. They hate cinnamon"
surfbluedevil is offline
Sponsored Links
Advertisement

post #2 of 6 Old 03-24-2011, 09:15 AM
Rock God

frankie945's Avatar

Join Date: Jun 2010
Location: southern indiana
Age: 42
Posts: 1,693
Feedback: 5 reviews

I just made one out of 3/16 th. It's still in the making. Just started to make the tire carrier. Ordered a draw latch. And ordered a spindle from A to Z fab.

I grinded a line to make the bends than MIG welded the seams that I bent

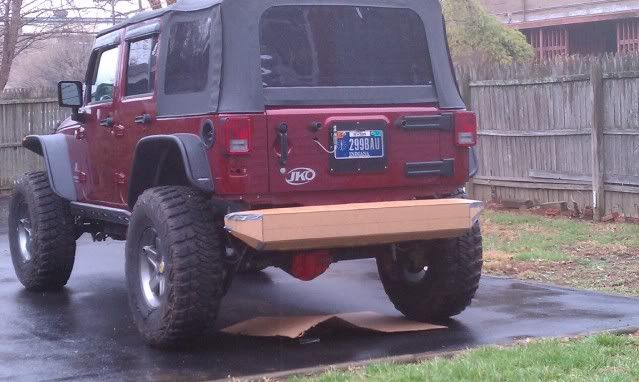

This is a test fit. Since have welded on shackle tabs and started on carrier.

Cost me only 80 bucks. Got steel free from work. Just had to order spindle and latch.



Sent from a Android on Tapatalk..

Last edited by frankie945; 03-24-2011 at 09:23 AM.
frankie945 is offline
post #3 of 6 Old 03-24-2011, 09:20 AM
Rock God

frankie945's Avatar

Join Date: Jun 2010
Location: southern indiana
Age: 42
Posts: 1,693
Feedback: 5 reviews

[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
frankie945 is offline
Sponsored Links
Advertisement

post #4 of 6 Old 03-24-2011, 10:06 AM Thread Starter
Granite Guru

surfbluedevil's Avatar

Join Date: Nov 2009
Location: Baton Rouge, LA
Age: 29
Posts: 398
Garage
Feedback: 1 reviews

i was thinking of something very simple. here's what i'm thinking of so far.
i have not put any angles on the ends or any cosmetic stuff. but you get the idea. the side view is shown with a 37*12.50 with 0 offset. and the third is just a simple latch i thought up. not sure if i would use it or go with something else.

2009 2dr, surf blue
lift, 35's, and other stuff.

"Tigers love pepper. They hate cinnamon"

Last edited by surfbluedevil; 12-12-2013 at 05:22 PM.
surfbluedevil is offline
post #5 of 6 Old 03-24-2011, 12:11 PM
JKO Addict!

venom's Avatar

Join Date: Sep 2007
Location: East of Abilene, TX
Posts: 6,381
Garage
Feedback: 0 reviews
Send a message via Skype™ to venom

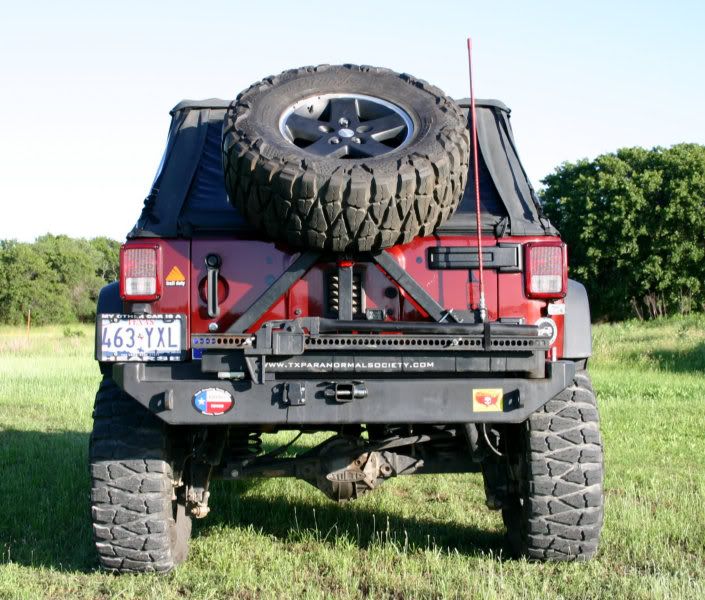

that carrier design looks exactly like Rock Hard's
strong & simple.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
Originally Posted by My Wife
I might just go crazy and kill you in your sleep, instead of just planning it.
venom is offline
post #6 of 6 Old 03-24-2011, 12:50 PM
Rock God

frankie945's Avatar

Join Date: Jun 2010
Location: southern indiana
Age: 42
Posts: 1,693
Feedback: 5 reviews

Those T handles work great but they rattle. That would drive me crazy.
Here is a good draw latch. I got the #3 for my build. Only took 2 days to receive it ordering through this place.
http://www.mcmaster.com/#draw-pull-latches/=bkqk7e

Also anyone building a bumper I recommend making one out of cardboard first to get a idea what it is going to look like and to get your measurements straight.
[IMG][/IMG]

Last edited by frankie945; 03-24-2011 at 12:56 PM.
frankie945 is offline
