2008 4 Door JK Rubicon Build LOTS of PICS

It all started with the Special order of My 4 door JK last November. It finally arrived about 8 weeks ago and I was busy and wondering if I really wanted it and it was sold. The next day I could have shot myself in the foot as i was ready to build another Rubicon up and being as the last Jeep was gone I now really wanted one. Well low and behold the local Dealer had another one coming in on June 17th with all the same options. This was June 7th and time to start assembling my build list. After deciding on what I wanted to use and what I was going to do I started ordering the parts. Of course, Full Traction lift is a month out, WE wheels a month out and I had 2 weeks before the jeep was coming... Of course... The normal Jeep stress was already setting in. So I started ordering parts and then BAM! June 12th the Jeep shows up 5 days early. Now I have a Jeep and no parts... This is normal in this industry though. Hurry up and wait.
SO the day of our offroad meeting I go down and pick it up. Drive from the dealers lot to out meeting (about 1/2 mile) and have to say it was the prettiest newest Jeep ever at our meeting LOL




SO low and behold the build has begun.

First was the parts list:

Suspension
Full Traction 4" Ultimate Lift
Bilstein Shocks
Fox Steering Stabilizer

Drivetrain
JE Reel Drive Shafts with 1310 U-joints will be used front and rear
Riddler Diff Covers F & R
ORE C2 Gussets
ORE Control arm skids
Alloy USA 5.13 Gears Front and Rear
Alloy USA F & R Axles

Tires and Wheels
17" Walker Evans Racing beadlocks
35x12.50-17 Toyo M/Ts (will be 37s when gears are off backorder)

Body, Protection & misc
Warn 9.5TI Winch
Viking Offroad Synthetic Winchline
Optima Yellow Top
Kilby Enterprises evap canister relocation kit
Red Rock Fab Front Bumper
Red Rock Fab Rear Bumper with Swingaway Tire Carrier
Red Rock Fab Sliders
Rockhard 4x4 Engine Skid
Rockhard 4x4 Tranny and transfer case Skid
Rockhard 4x4 Gas Tank Skid
Bestop Element Doors F & R
Bestop Safari Top
Kc Windshield Light Brackets
KC Slim Lites
Mastecraft Baja Reclining Front Seats
Mastercraft Slip Cover for Matching Rear Bench
Powertank 10 LB Tank


Added the club logo and tinted the windows (it is hot here in the desert)




Last edited by vegasjeep; 06-25-2008 at 04:11 PM.
vegasjeep is offline
Sponsored Links
Advertisement

post #2 of 33 Old 06-25-2008, 03:48 PM Thread Starter
Rock God

vegasjeep's Avatar

Join Date: Jun 2008
Location: Las Vegas-Northwest side
Age: 41
Posts: 630
Feedback: 0 reviews
Send a message via Yahoo to vegasjeep

A few other misc things arrived

Started with the Mastercraft Grab Handles.

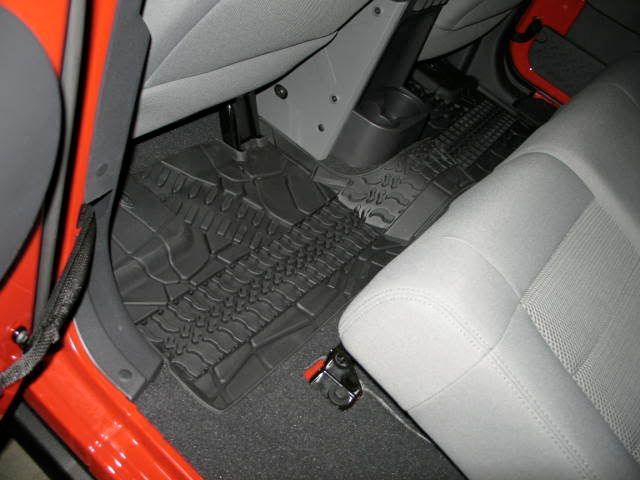

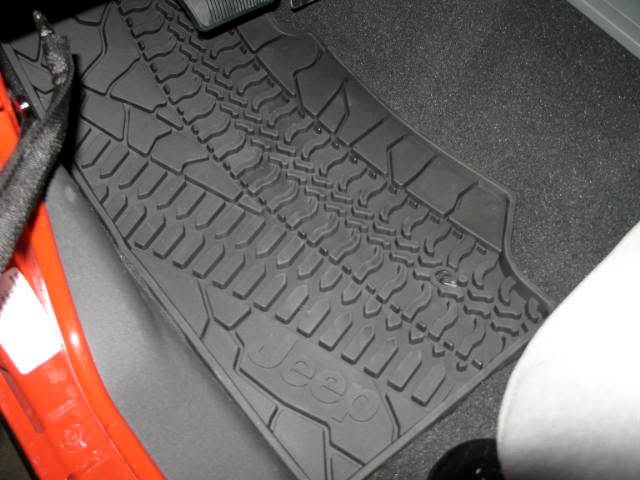

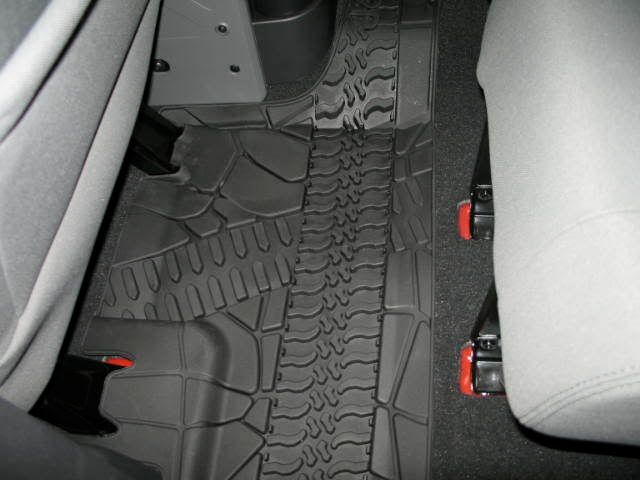

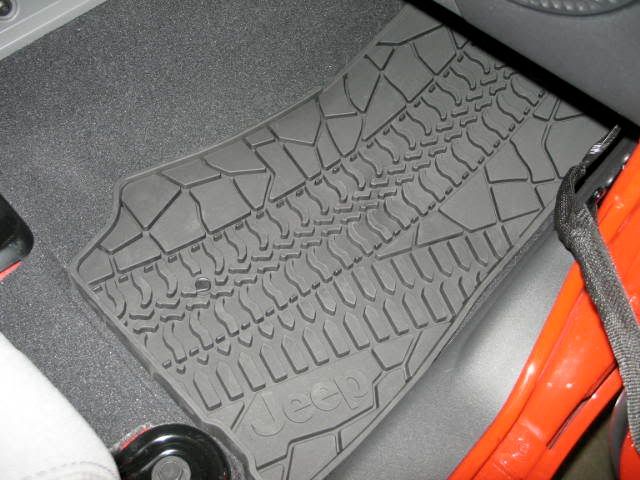

Then I threw in the Mopar Floor Mats

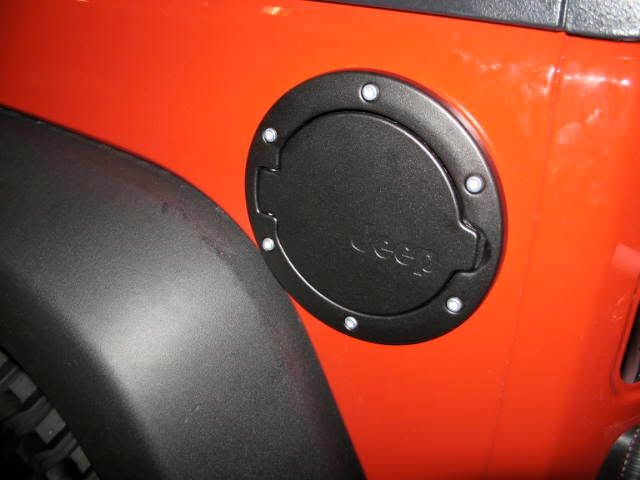

Then I installed the Mopar Fuel door. I like the look better then an open Fuel Cap

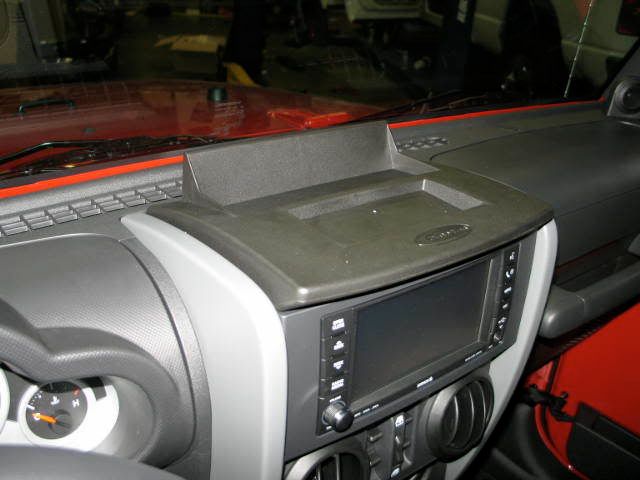

Then came the Daystar Dash Pad

vegasjeep is offline
post #3 of 33 Old 06-25-2008, 03:49 PM Thread Starter
Rock God

vegasjeep's Avatar

Join Date: Jun 2008
Location: Las Vegas-Northwest side
Age: 41
Posts: 630
Feedback: 0 reviews
Send a message via Yahoo to vegasjeep

Next as parts arrived I could actually work on I started prepping them. Riddler Diff covers were cleaned and painted as well as the install of the Optima Battery

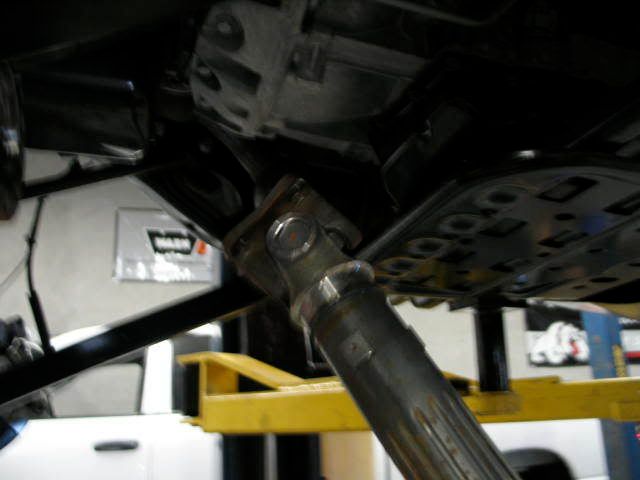

JE Reel 1310 Driveshafts also arrived

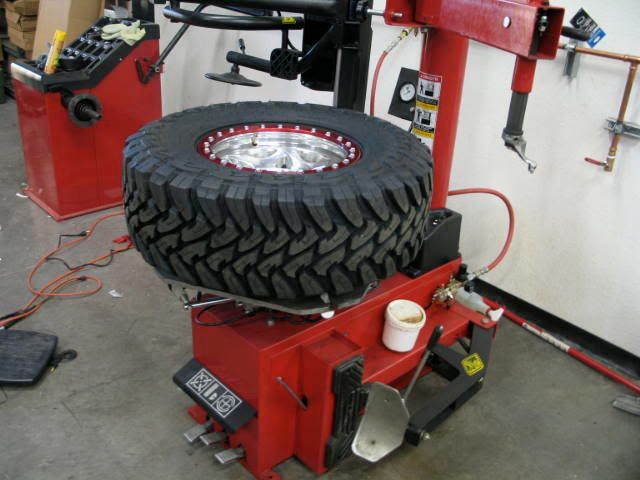

Wheels and Tires are here and were mounted





vegasjeep is offline
Sponsored Links
Advertisement

post #4 of 33 Old 06-25-2008, 03:51 PM Thread Starter
Rock God

vegasjeep's Avatar

Join Date: Jun 2008
Location: Las Vegas-Northwest side
Age: 41
Posts: 630
Feedback: 0 reviews
Send a message via Yahoo to vegasjeep

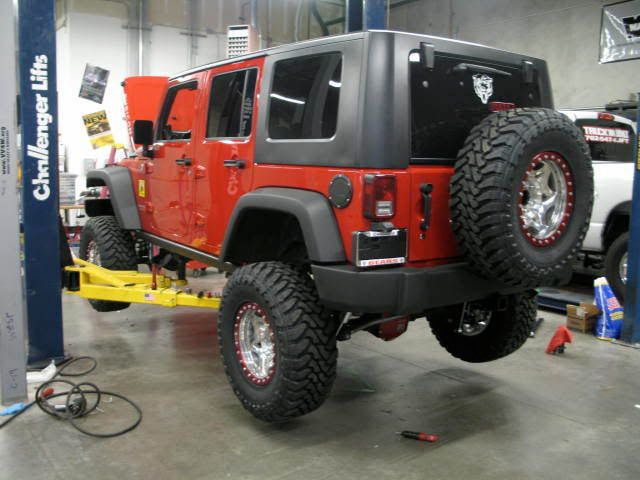

The Full Traction 4" Ultimate lift finally showed up. It was time t get down to business. This lift fit better then ANY other lift I have ever installed. The brackets mounted nice, the holes lined up for bolts. Very easy lift to install. I have two issues with this lift. One my front Trac Bar hits my riddler Diff cover. This is the thinest of Diff covers and I now have my arms 1/4" shorter then stock to try and get it to clear. It still rubs after much grinding on the diff as well. You will see pics of that later. The other is this lift is supposed to sit level. It sits about 3/4" lower in the front. Enough that I have now put 3/4" spacers in the front as otherwise my bumper would be draggin the ground when it gets installed with my winch.



















vegasjeep is offline
post #5 of 33 Old 06-25-2008, 03:52 PM Thread Starter
Rock God

vegasjeep's Avatar

Join Date: Jun 2008
Location: Las Vegas-Northwest side
Age: 41
Posts: 630
Feedback: 0 reviews
Send a message via Yahoo to vegasjeep

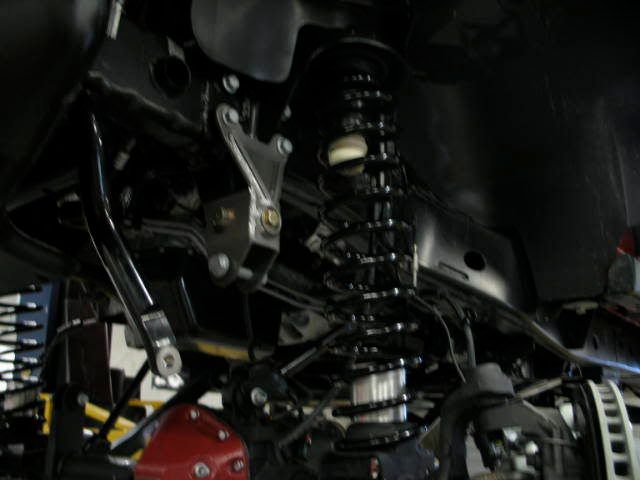

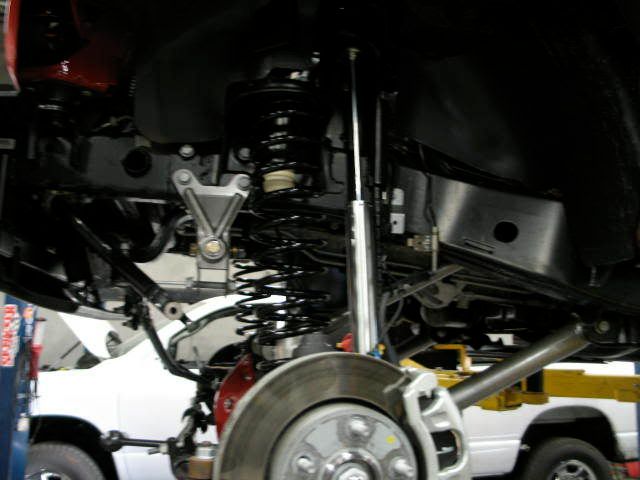

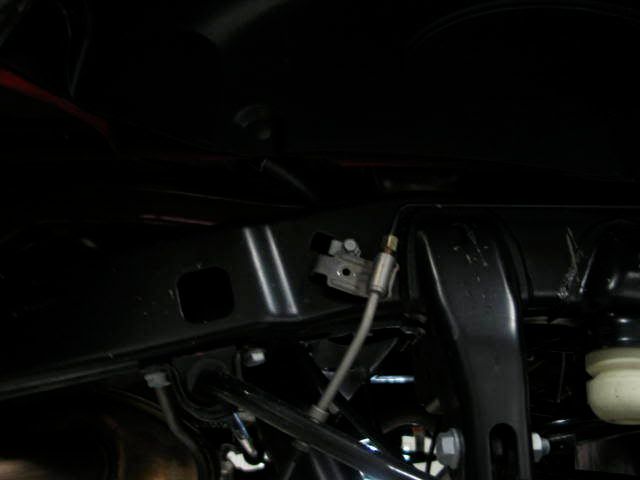

This group of pics shows the installation of the front end suspension components. This kit went on very very nice.




















Last edited by vegasjeep; 06-25-2008 at 03:55 PM.
vegasjeep is offline
post #6 of 33 Old 06-25-2008, 03:54 PM Thread Starter
Rock God

vegasjeep's Avatar

Join Date: Jun 2008
Location: Las Vegas-Northwest side
Age: 41
Posts: 630
Feedback: 0 reviews
Send a message via Yahoo to vegasjeep

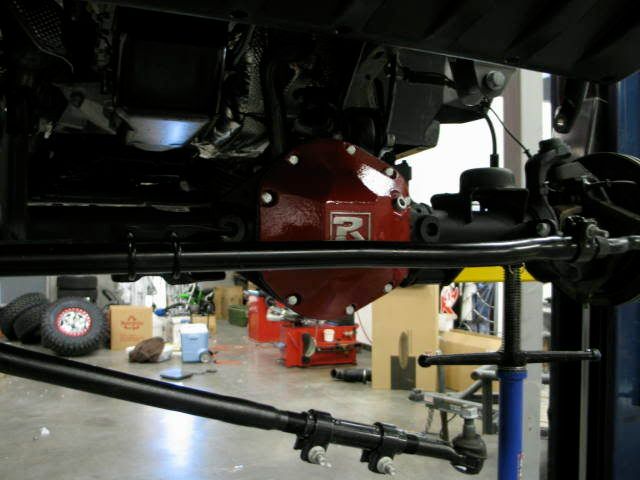

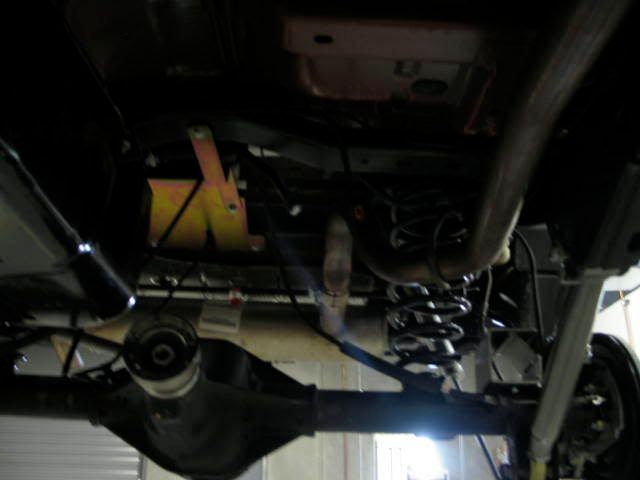

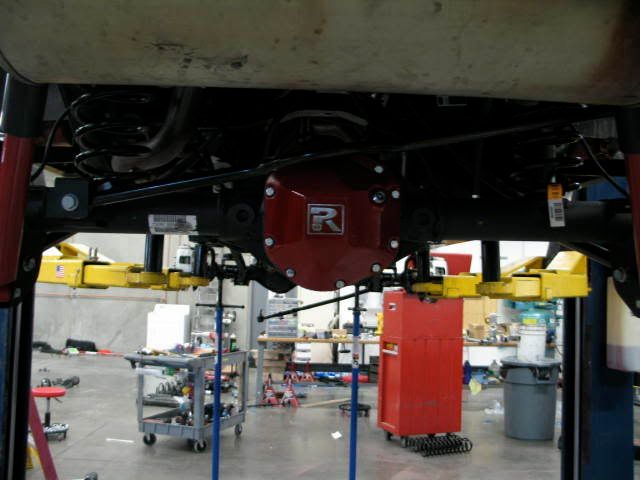

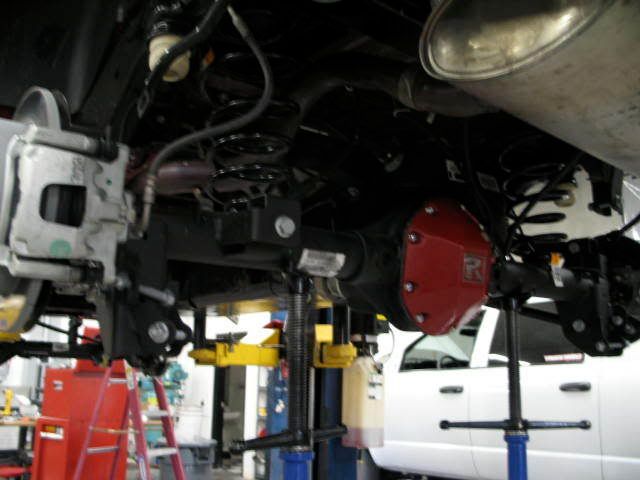

These pics show the installation of the Rear Diff cover, Kilby relcation bracket, Trac bar and rear end suspension components as well as getting ready to set it on the ground to tighten up all the arms.

















vegasjeep is offline
post #7 of 33 Old 06-25-2008, 03:56 PM Thread Starter
Rock God

vegasjeep's Avatar

Join Date: Jun 2008
Location: Las Vegas-Northwest side
Age: 41
Posts: 630
Feedback: 0 reviews
Send a message via Yahoo to vegasjeep

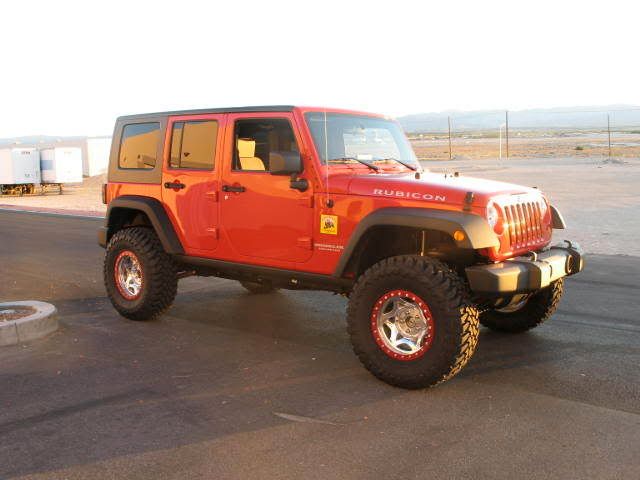

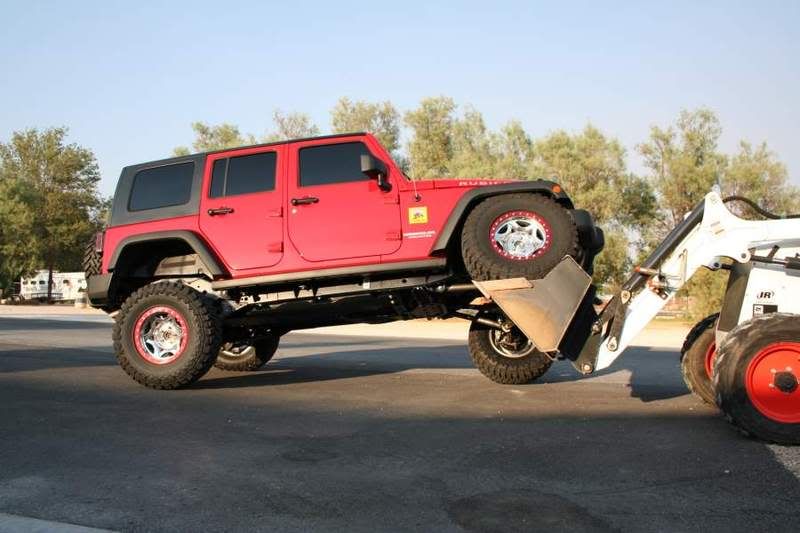

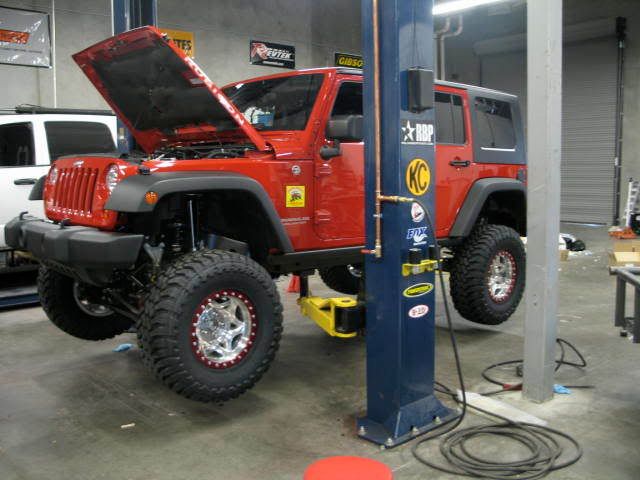

This concluded getting this beast lifted and back on to the ground. The finl product looked like this.



vegasjeep is offline
post #8 of 33 Old 06-25-2008, 03:56 PM Thread Starter
Rock God

vegasjeep's Avatar

Join Date: Jun 2008
Location: Las Vegas-Northwest side
Age: 41
Posts: 630
Feedback: 0 reviews
Send a message via Yahoo to vegasjeep

Of course we had to take it out in the dirt... LOL











vegasjeep is offline
post #9 of 33 Old 06-25-2008, 03:58 PM Thread Starter
Rock God

vegasjeep's Avatar

Join Date: Jun 2008
Location: Las Vegas-Northwest side
Age: 41
Posts: 630
Feedback: 0 reviews
Send a message via Yahoo to vegasjeep

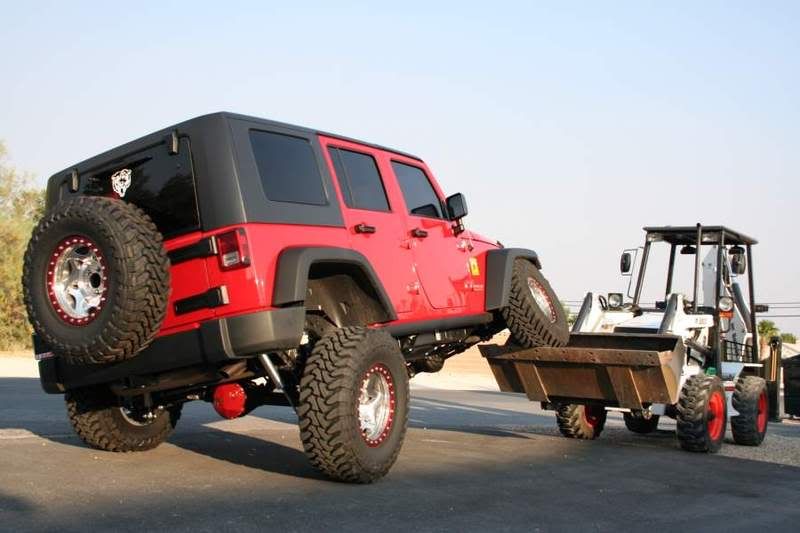

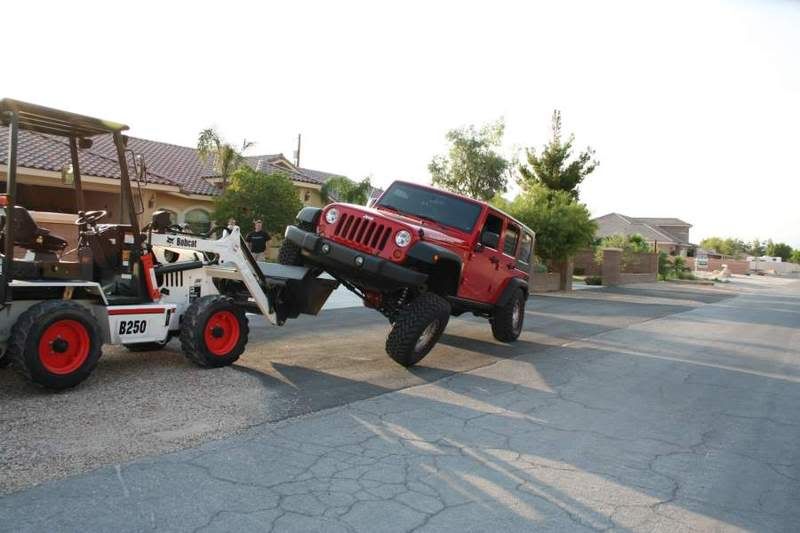

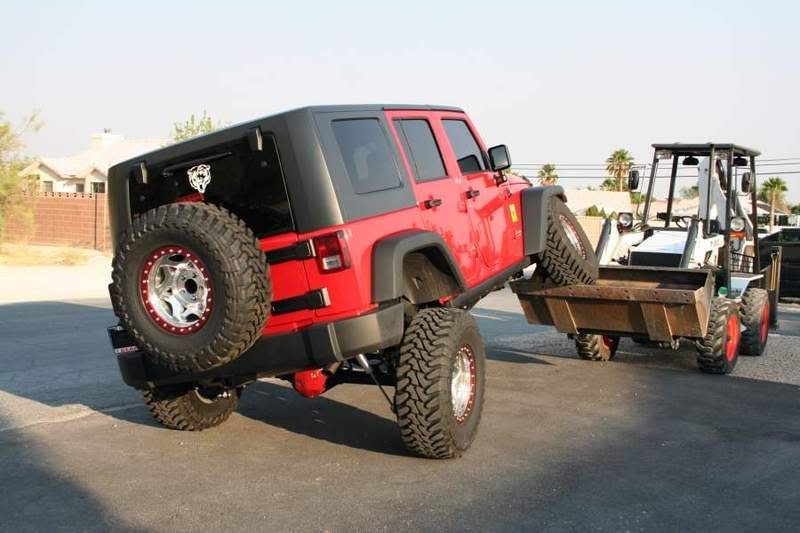

That night I decided to get out the Tractor and check out the Flex that the 4" Ultimate Kit gave us for our Rubicon Trip in 2 weeks. I was quite impressed with what we got. I think we would have more but the factory Rubicon Electronic disconnect was our limiting factor.

















vegasjeep is offline
post #10 of 33 Old 06-25-2008, 04:01 PM Thread Starter
Rock God

vegasjeep's Avatar

Join Date: Jun 2008
Location: Las Vegas-Northwest side
Age: 41
Posts: 630
Feedback: 0 reviews
Send a message via Yahoo to vegasjeep

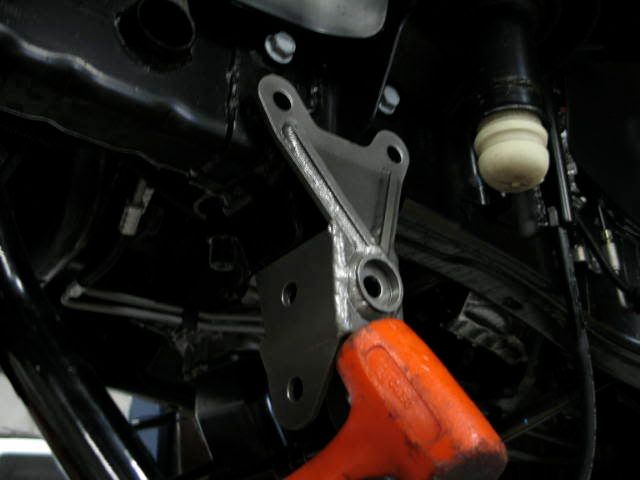

We pulled it back in last night and welded on the ORE products.
