Angry Broken Rear Upper Shock Mount?

Anyone else break theirs?

Walked out of restaurant at lunch, saw my rear shock sitting kinda funny. Made me stop in my tracks, get under there and look - and sure enough, the top of the shock (rear driver's side) is free floating and sitting next to the muffler. Notice the upper mount is just hanging there, completely free on one side with the bushing on it. Grab the mount, and the other side breaks free with a single pull.

My first thought was that someone in a little car ran into me, but there were no marks in the dirt on the shock, except where it was rubbing on the brake cable, and the scratches on my muffler indicated that I had been driving with it.

Funny enough, hardly noticed a difference in the ride, except the rear corner rolls a bit more (had to get it home, somehow), and of course, the sound of my shock banging on the muffler.

Anyone else break theirs? These shock mounts are clearly junk - are there any upgraded options?

I'll post pics in a bit. FWIW, I have a skyjacker 2.5" lift kit on it (shocks, springs, etc.)

!c
jkdrone is offline
Sponsored Links
Advertisement

post #2 of 22 Old 02-01-2009, 12:04 PM Thread Starter
Rock God

jkdrone's Avatar

Join Date: Jun 2008
Location: Houston, TX
Posts: 712
Garage
Feedback: 0 reviews

Pics:

Mount w/ bushing on it:


Mount w/ bushing off: (short side broke first)


Mount location:







FWIW, I just removed the shock - going to have to drive it like this (carefully) until I can get a new mount and bushing, hopefully can take care of both tomorrow.

!c
jkdrone is offline
post #3 of 22 Old 02-01-2009, 12:33 PM
Openly Hostile

Join Date: Apr 2008
Location: Mission Viejo, CA
Age: 38
Posts: 6,984
Feedback: 4 reviews

If you want to ditch the bar pins poly makes a nice bracket. I have it myself and it works very well.

http://www.polyperformance.com/shop/...t-p-16757.html

Jason
SDMF is offline
post #4 of 22 Old 02-01-2009, 12:37 PM Thread Starter
Rock God

jkdrone's Avatar

Join Date: Jun 2008
Location: Houston, TX
Posts: 712
Garage
Feedback: 0 reviews

Quote:
Originally Posted by SDMF View Post
If you want to ditch the bar pins poly makes a nice bracket. I have it myself and it works very well.

http://www.polyperformance.com/shop/...t-p-16757.html

Holy cow - those're cheaper than _one_ replacement mount from Mopar ($90). I wonder how fast I can get 'em shipped? Don't want to run on three shocks for very long.

!c
jkdrone is offline
post #5 of 22 Old 02-01-2009, 01:59 PM
Banned

Join Date: Aug 2007
Location: Denver
Posts: 3,230
Feedback: 0 reviews
Send a message via Yahoo to WTF_LOL

lol, when I first started reading this I thiught you were talking about the mounting bracket itself!

Yah, those bar pins suck. x2 on the poly bar pin eliminators

JKS has one out now to which I like a little better

http://store.jksmfg.com/merchant2/me...ory_Code=Shock

I think I will be getting these ones and some washers to go between the bushing and the mounts. Kinda surprised they don't come with them with how it preloads


Last edited by WTF_LOL; 02-01-2009 at 02:02 PM.
WTF_LOL is offline
post #6 of 22 Old 02-01-2009, 02:04 PM
Banned

Join Date: Aug 2007
Location: Denver
Posts: 3,230
Feedback: 0 reviews
Send a message via Yahoo to WTF_LOL

Actually, I was just thinking about it, even though the JKS is slightly cheaper, I think the POly ones would be easier to swap out shocks as you would not have to mess with the bolt above the mount. Gues I will be getting the poly ones
WTF_LOL is offline
post #7 of 22 Old 02-01-2009, 02:23 PM Thread Starter
Rock God

jkdrone's Avatar

Join Date: Jun 2008
Location: Houston, TX
Posts: 712
Garage
Feedback: 0 reviews

Rockrash 4x4/Redneckhouston has taken care of me - I'm going to go pick up a pair of the poly ones from him tonight. Of course, one is left to wonder as to how one of these breaks driving on the street - so we're going to look into that too, maybe the bumpstops aren't doing their job.

I was just kinda shocked (lol) to see my shock laying on the ground when I came out of lunch!

I like the JKS ones, but I agree that the poly's look much easier to deal with. And, the polys are what I can get tongiht =)

!c
jkdrone is offline
post #8 of 22 Old 02-01-2009, 05:39 PM
JKO Addict!

bodyguy's Avatar

Join Date: Jul 2008
Location: Shit Creek, Texas
Age: 39
Posts: 4,013
Feedback: 0 reviews

its not a bump stop issue but more of using the shocks for limiting suspension droop. Reason I say that is under compression the shock would be pushing the bar against the bracket not really putting it under too much stress. When the shock is being used to limit droop the bar is being pulled away from the mount and only the bolt heads are offering the support which isn't that big of an area. my 2 pennies


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
bodyguy is offline
post #9 of 22 Old 02-01-2009, 06:05 PM
Super Moderator

StubEXrube's Avatar

Join Date: Jun 2008
Location: Austin Texas
Posts: 14,816
Garage
Feedback: 5 reviews

Quote:
Originally Posted by jkdrone View Post
Of course, one is left to wonder as to how one of these breaks driving on the street...
Also...It's possible that the stress related failure could have happened while wheeling, It could have been already fractured and/ or weakened...and finally just broke completely through while on the road.
StubEXrube is offline
post #10 of 22 Old 02-01-2009, 07:41 PM
Granite Guru

Join Date: Jun 2008
Location: texas
Posts: 404
Feedback: 1 reviews

Quote:
Originally Posted by bodyguy View Post
its not a bump stop issue but more of using the shocks for limiting suspension droop. Reason I say that is under compression the shock would be pushing the bar against the bracket not really putting it under too much stress. When the shock is being used to limit droop the bar is being pulled away from the mount and only the bolt heads are offering the support which isn't that big of an area. my 2 pennies

judging from the pics ....the direction of the break.....i agree 100%
redneckhouston is offline
post #11 of 22 Old 02-02-2009, 06:56 AM Thread Starter
Rock God

jkdrone's Avatar

Join Date: Jun 2008
Location: Houston, TX
Posts: 712
Garage
Feedback: 0 reviews

Well, it appears the shock is shot as well - it's gritty, nasty, and sticks in a spot when compressing and expanding it. There is also a spot where the shock came into contact with the skyjacker trackbar relocation bracket.

The current working theory I had (until reading this now) is that the shock hit the bracket and bent, and was not compressing/releasing properly causing the eventual failure of the bar pin.

Of course, now I'm wondering if that's right. But, if using the shocks to limit droop is the problem, what can be done to rectify that? Using shorter anti-sway links in the rear?

I'm about to drop some $$ on new MX6 shocks (I hate those skyjacker ones anyhow) - and don't really just want to throw it away and have those f-up too. Would like to solve the primary problem. Going to order an adjustable track bar for the rear too.

!c
jkdrone is offline
post #12 of 22 Old 02-02-2009, 07:26 AM
Rock God

RoCk-NeSs MoNsTeR's Avatar

Join Date: Dec 2008
Location: Fort Collins, CO
Posts: 1,727
Feedback: 0 reviews

Quote:
Originally Posted by jkdrone View Post
Well, it appears the shock is shot as well - it's gritty, nasty, and sticks in a spot when compressing and expanding it. There is also a spot where the shock came into contact with the skyjacker trackbar relocation bracket.

The current working theory I had (until reading this now) is that the shock hit the bracket and bent, and was not compressing/releasing properly causing the eventual failure of the bar pin.

Of course, now I'm wondering if that's right. But, if using the shocks to limit droop is the problem, what can be done to rectify that? Using shorter anti-sway links in the rear?

I'm about to drop some $$ on new MX6 shocks (I hate those skyjacker ones anyhow) - and don't really just want to throw it away and have those f-up too. Would like to solve the primary problem. Going to order an adjustable track bar for the rear too.

!c
Do not use shorter links in the rear. Limiting straps are your answer.
http://www.polyperformance.com/shop/...trap-p-47.html
RoCk-NeSs MoNsTeR is offline
post #13 of 22 Old 02-02-2009, 07:49 AM Thread Starter
Rock God

jkdrone's Avatar

Join Date: Jun 2008
Location: Houston, TX
Posts: 712
Garage
Feedback: 0 reviews

Quote:
Originally Posted by RoCk-NeSs MoNsTeR View Post
Do not use shorter links in the rear. Limiting straps are your answer.
http://www.polyperformance.com/shop/...trap-p-47.html
Interesting. What would be the preferred method for sizing such straps?

!c
jkdrone is offline
post #14 of 22 Old 02-02-2009, 02:36 PM
JKO Addict!

bodyguy's Avatar

Join Date: Jul 2008
Location: Shit Creek, Texas
Age: 39
Posts: 4,013
Feedback: 0 reviews

Install your shock measure how much of the piston rod is showing (static ride). Remove the shock and fully extend it and measure the full length of the piston rod and subtract the static ride length of the piston rod. Find a mounting location for the limiting strap on the axle and frame. Measure the distance between the mounting locations and then add the measurement you have from the piston rod length. Once you have that measurement subtract one to two inches. I hope this makes sense


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
bodyguy is offline
post #15 of 22 Old 02-02-2009, 02:39 PM Thread Starter
Rock God

jkdrone's Avatar

Join Date: Jun 2008
Location: Houston, TX
Posts: 712
Garage
Feedback: 0 reviews

Quote:
Originally Posted by bodyguy View Post
Install your shock measure how much of the piston rod is showing (static ride). Remove the shock and fully extend it and measure the full length of the piston rod and subtract the static ride length of the piston rod. Find a mounting location for the limiting strap on the axle and frame. Measure the distance between the mounting locations and then add the measurement you have from the piston rod length. Once you have that measurement subtract one to two inches. I hope this makes sense
Makes perfect sense. I found an article earlier that referenced bringing it to full-flex in a shop w/ the vehicle on jack-stands and using an engine hoist, heh. This sounds a lot more reasonable =)

!c
jkdrone is offline
post #16 of 22 Old 02-02-2009, 02:53 PM
JKO Addict!

bodyguy's Avatar

Join Date: Jul 2008
Location: Shit Creek, Texas
Age: 39
Posts: 4,013
Feedback: 0 reviews

Quote:
Originally Posted by jkdrone View Post
Makes perfect sense. I found an article earlier that referenced bringing it to full-flex in a shop w/ the vehicle on jack-stands and using an engine hoist, heh. This sounds a lot more reasonable =)

!c
Glad to help


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
bodyguy is offline
post #17 of 22 Old 02-02-2009, 03:58 PM
TrailDuty.com

PhilD's Avatar

Join Date: Sep 2007
Location: Texas
Posts: 5,205
Feedback: 5 reviews

Quote:
Originally Posted by RoCk-NeSs MoNsTeR View Post
Do not use shorter links in the rear. Limiting straps are your answer.
I agree on not using shorter links, to keep your sway bar geometry right the ends of the sway bar should be parallel to the ground, or close to. Shorter links would mess this up. Rather than using limit straps though I'd personally use shocks with a longer extended length. My shocks are not the limiting factor in suspension travel, rather the sway bars and control arms are.

I use JKS bar pin eleminators for the rear uppers also. Some of the shock pins, like the Fox ones are sold and will not break easily, hwoever I found that the shocks would slide down the pins to one end, so JKS bar pin eleminators work better.
PhilD is offline
post #18 of 22 Old 02-02-2009, 04:22 PM
JKO Addict!

RotorHead's Avatar

Join Date: Oct 2007
Location: Dacula, Georgia
Age: 49
Posts: 3,201
Garage
Feedback: 0 reviews

Quote:
Originally Posted by PhilD View Post
I agree on not using shorter links, to keep your sway bar geometry right the ends of the sway bar should be parallel to the ground, or close to. Shorter links would mess this up. Rather than using limit straps though I'd personally use shocks with a longer extended length. My shocks are not the limiting factor in suspension travel, rather the sway bars and control arms are.

I use JKS bar pin eleminators for the rear uppers also. Some of the shock pins, like the Fox ones are sold and will not break easily, hwoever I found that the shocks would slide down the pins to one end, so JKS bar pin eleminators work better.
I would not advise using your sway bar to limit down travel. The sway bar can reverse and cause damage to your calipers. I had my shock mounts moved up by a shop and they went farther than I wanted them to. The sway bar reversed on the trail and I broke a bleeder screw off giving me no brakes. Not fun. Luckily I was able to seal the leak after removing the links. I now have the Poly lower relocation bracket and all is good.



RotorHead is offline
post #19 of 22 Old 02-02-2009, 05:06 PM
TrailDuty.com

PhilD's Avatar

Join Date: Sep 2007
Location: Texas
Posts: 5,205
Feedback: 5 reviews

Quote:
Originally Posted by RotorHead View Post
I would not advise using your sway bar to limit down travel. The sway bar can reverse and cause damage to your calipers. I had my shock mounts moved up by a shop and they went farther than I wanted them to. The sway bar reversed on the trail and I broke a bleeder screw off giving me no brakes. Not fun. Luckily I was able to seal the leak after removing the links. I now have the Poly lower relocation bracket and all is good.
Thanks for the info, useful to know. It hasn't happened to me yet and I've looked at the rear good when it's fully flexed out and don't see it happening either. My shocks would bottom out before the sway bar links flipped, and the link/control arm combo stop my shocks from bottoming out. When flexed hard I'm sure the shock may bottom out, but the force on them will be minimal by that point.

The Poly sway bar links are long enough to keep the sway bar ends level at rest, as they should be, and as a result at full flex they are nowhere near flipping over. I can see it happening if the links are on the short side, but not if they are long.
PhilD is offline
post #20 of 22 Old 02-02-2009, 07:35 PM
JKO Addict!

RotorHead's Avatar

Join Date: Oct 2007
Location: Dacula, Georgia
Age: 49
Posts: 3,201
Garage
Feedback: 0 reviews

Quote:
Originally Posted by PhilD View Post
Thanks for the info, useful to know. It hasn't happened to me yet and I've looked at the rear good when it's fully flexed out and don't see it happening either. My shocks would bottom out before the sway bar links flipped, and the link/control arm combo stop my shocks from bottoming out. When flexed hard I'm sure the shock may bottom out, but the force on them will be minimal by that point.

The Poly sway bar links are long enough to keep the sway bar ends level at rest, as they should be, and as a result at full flex they are nowhere near flipping over. I can see it happening if the links are on the short side, but not if they are long.
Yeah, my teraflex non-adjustable links leave the rear sway bar slightly down at rest in the rear, but the main point is that you don't want your sway bar to ever reach a near straight line with the links when drooped. Under normal conditions the rear sway bar wouldn't droop to the point that it could flip, but when they relocated my lower shock mounts, they moved them up about 4". I had to droop the whole axle perfectly in order to make them flip. On Rubicon models, because of the disconnect, you can do this by just drooping one side in the front, but on the rear you would need to droop both sides.

The Poly bracket I installed after that put them about 2" above stock. I am good now.

Thanks for the new brackets Phil.

Just so you all know. This was an install error on my part or at least the shop I payed to make the mod, but it is something we should all be aware of. Make sure your sway bar links are long enough to accommodate your travel length in both directions.

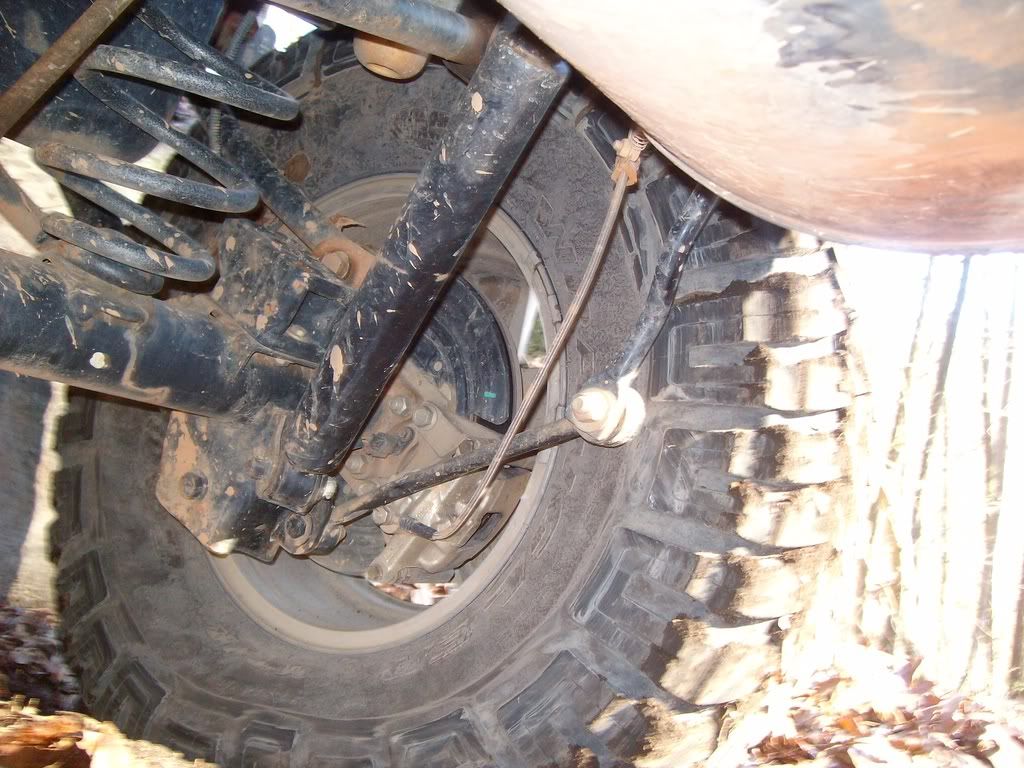

Notice the mount location before installing the Poly bracket:

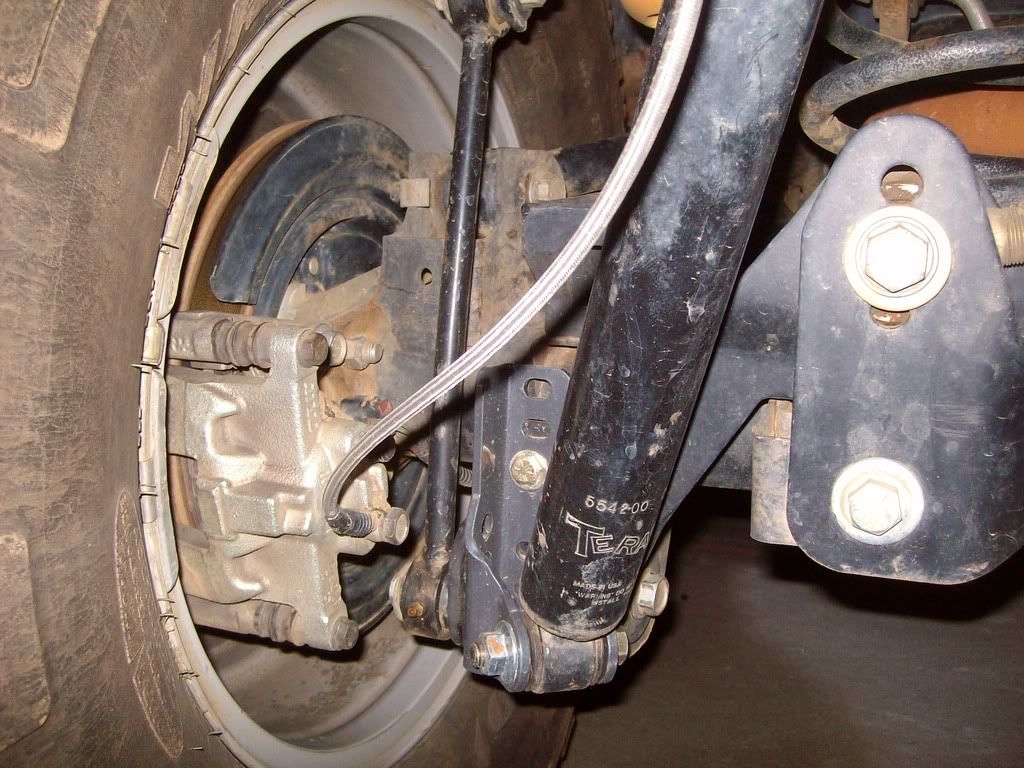

After cutting off the bracket, grinding and installing Poly Performance bracket:

Last edited by RotorHead; 02-02-2009 at 08:18 PM.
RotorHead is offline
post #21 of 22 Old 02-03-2009, 09:24 PM Thread Starter
Rock God

jkdrone's Avatar

Join Date: Jun 2008
Location: Houston, TX
Posts: 712
Garage
Feedback: 0 reviews

Ok, so I got them mounted and with new MX6 shocks in the rear. (Haven't done the front yet.)

As a complete mistake, I ordered the wrong part #, and got the shocks for up to 2". I measured the skyjackers and the mx6, and with the extended length of the brackets vs. the bar pins, I only lost about 1/2" of travel. But, the skyjacker shocks were completely blown at 17k miles (ok, so I drive on really rough streets, and the rocks don't help too much either =). So the ride in the rear is like new.

All-in-all a bit of a pain in the butt trying to do it in my parkign lot w/ just the spare jack, but it got the job done.

For those installing the BPE's from poly: it's all pretty obvious, except: the shock has to be installed in the bracket first, as there isn't enough room to put the bolt through when you've mounted the bracket. (Whoops.) And leave the washer off on the nut side of the bolt, otherwise you won't be able to get the allen-head mounting bolt in-place.

!c
jkdrone is offline
post #22 of 22 Old 02-11-2009, 01:53 PM
Wheeler

Join Date: Jul 2008
Location: (714)
Posts: 85
Feedback: 0 reviews

I bought the JKS ones initially but they are only compatible with 5/8" shock eyes...the Fox Racing shocks I have are 1/2" so i went with the Rough Country set for $19.99 and made them work! They are very similar to the poly ones.

http://www.roughcountry.com/jeep_xtr...liminator.html

Black '07 2dr M6 Rubicon/Warn 9.5ti
seal20 is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the JKowners.com : Jeep Wrangler JK Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
